Collins Amateur Radio Equipment




Collins Amateur Radio Equipment 1946 to 1980


콜린스 제품 중 아마추어무선用 송·수신기 모음.(회로도는 일부만 )
(ebay ave.는 참고용으로 ebay에서 거래된 평균 값 임)

: TRCVR   pink01_next.gif : Amplifier  circle12_red.gif : TX  circle12_blue.gif : RX  watermelon02_red.gif : Acc. or PWR   square19_green.gif : Transverter  circle13_pink.gif : VFO,   : Diagram

(클릭하면 큰사진)

Model

Year
그때

Specifications

Old
Price
Rockwell

ebay ave.
(max.)
020701

Emblem
Circuit


CW/SSB 송·수신기

KWM-2A

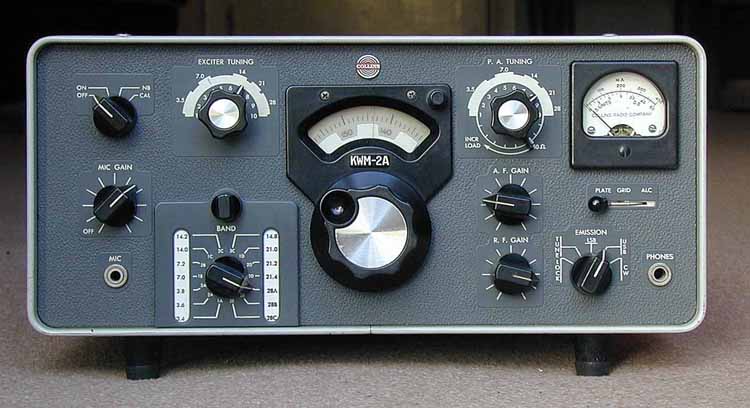

1961
~

CW/SSB Transceiver   PTO type 70K-2
    3.4 to 30MHz in 28 bands   100watts into 50Ω
    516F-2(115V), PM-2 (115/230V),
    516E-1(12V), 516E-2(28V), MP-1(12V)
    +800V 250mA,     Final two 6146
    +275V 200mA,  -60~-80V, 6.3V 6A
    Tubes 2 12AT7, 2 6146B, 1 6AU6, 3 6AZ8,
            3 6BN8, 1 6CL6, 1 6DC6, 1 6EB8, 4 6U8

$1,17500
(1959年)
$1,250.00
(1961年)
$3,533.00 in 1977
60年代
마란츠7
$264.
00

$1,070.42
($2,227.00)



現在(2002)
마란츠7
$3,000±


1961~1969

1970~1973

1975~1982

KWM-2

1959~

CW/SSB Transceiver   PTO type 70K-2
    3.4 to 30MHz in 14 bands   100watts into 50Ω
    516F-2(115V), PM-2 (115/230V),
    516E-1(12V), 516E-2(28V), MP-1(12V)

$1,095.00
(1959年)

$706.38
($1,225.00)


1959~1969

1970~1973

312B-5
*R

1959~

watermelon02_red.gif Station Control/PTO for KWM-2
     KWM2 for sprit frequency operation
     Phone patch, speaker,  directional coupler
     Wattmeter and station control switches

$330.00
(1959年)

$350.
00

$1,616.00

in 1977

$711.40
($995.00)

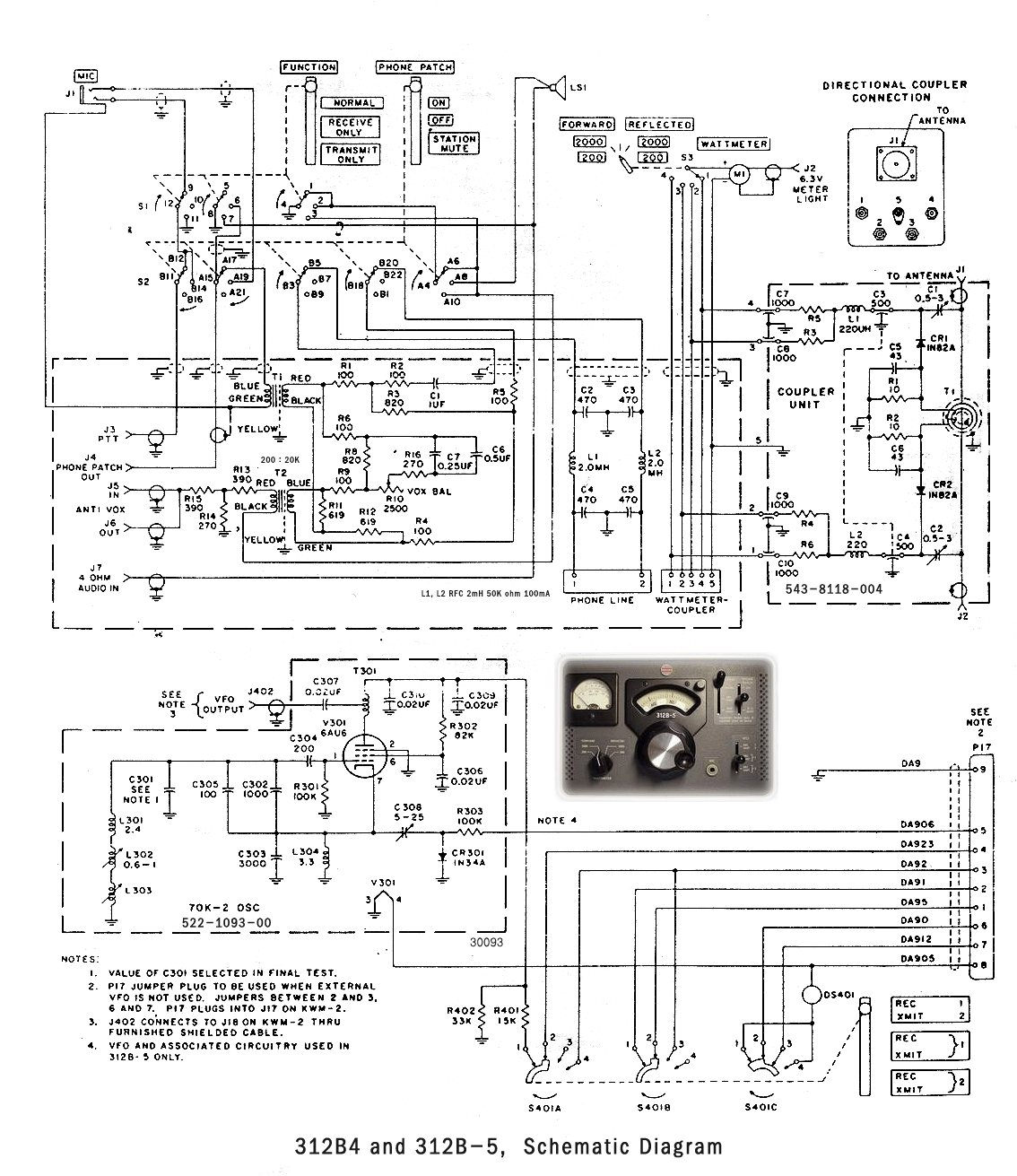

312B-4

1958~

watermelon02_red.gif Station Control for S-Line, KWM-2
     Phone patch, speaker,  directional coupler
     Wattmeter and station control switches

$185.00

$648.00

in 1977

$263.98
($579.00)

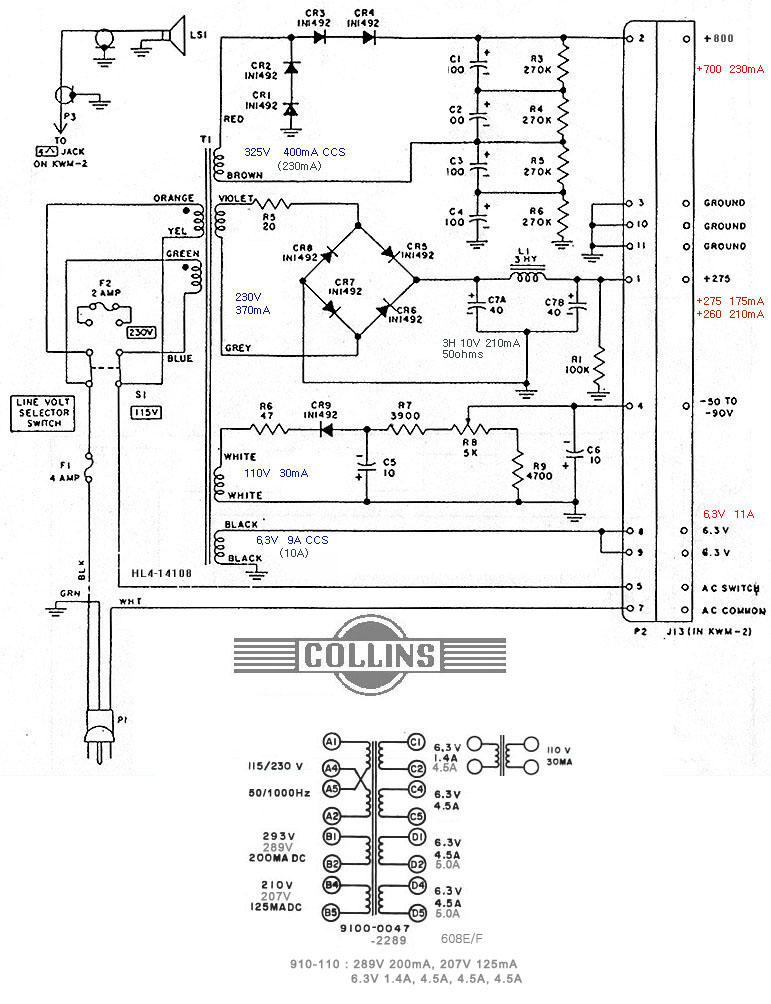

PM-2

1961~

watermelon02_red.gif Portable Power Supply for KWM-2
    AC 115V / 230V  50~60Hz

    6.0~6.3V AC 11A,700V 230mA,-50~-90VDC,
    275V(265V) 175mA(210mA)

$150.00

$680.00
in 1977

$180.00
($300.00)

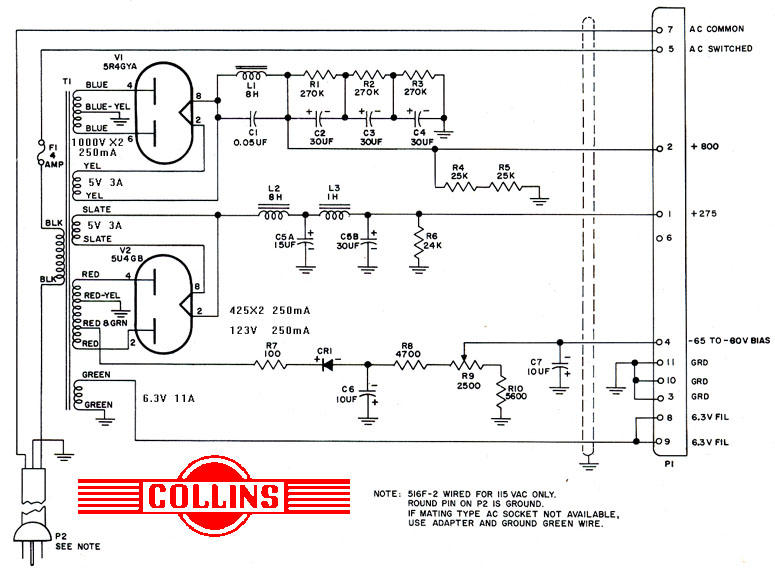

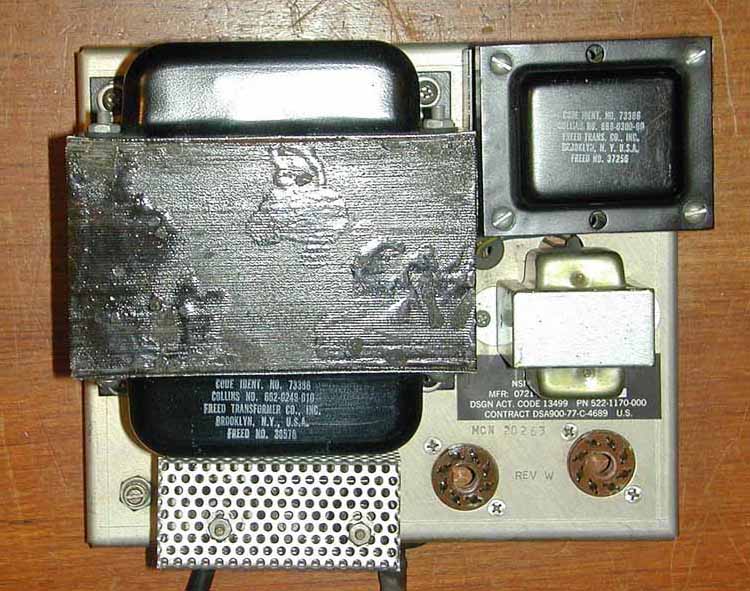

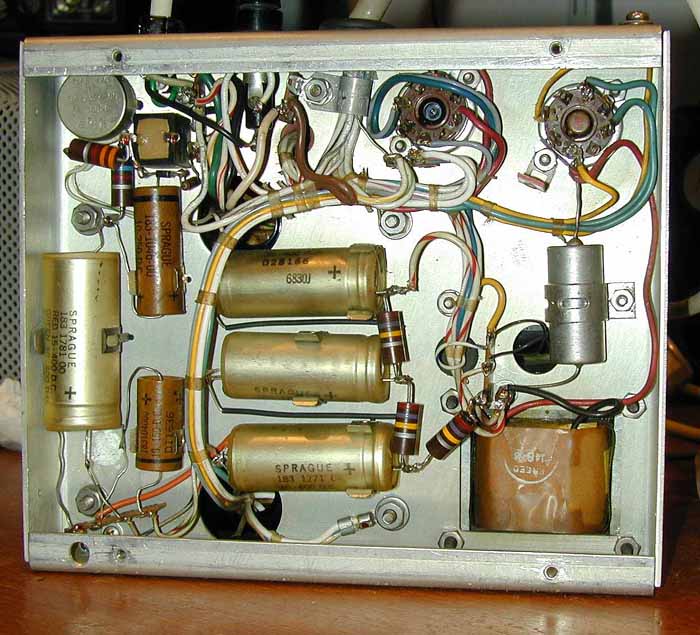

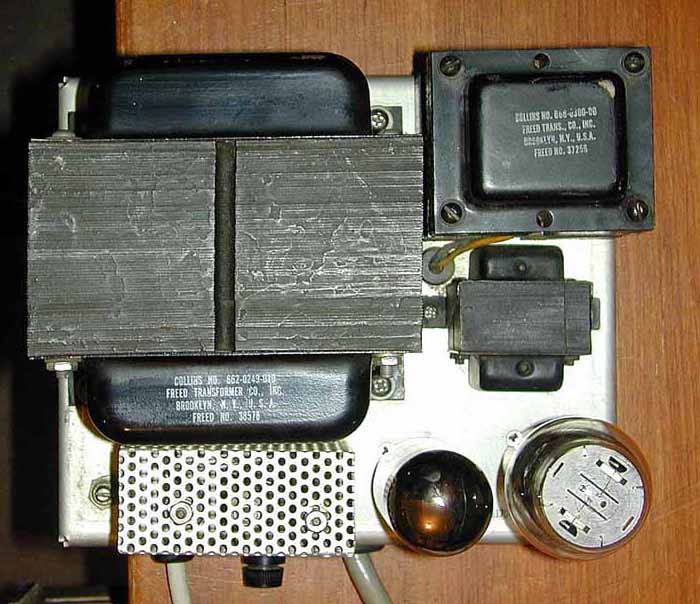

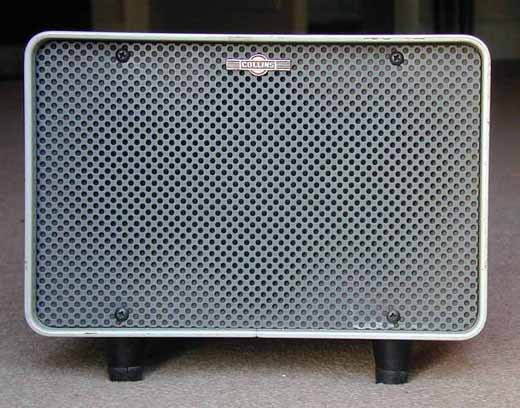

516F-2
* * * *

1958~

watermelon02_red.gif AC Power Supply for S-Line,KWM-2
    Tubes 5R4, 5U4
     AC 115V

$105.00

$440.00
in 1977

$336.64
($611.99)




30L-1

*

1961~

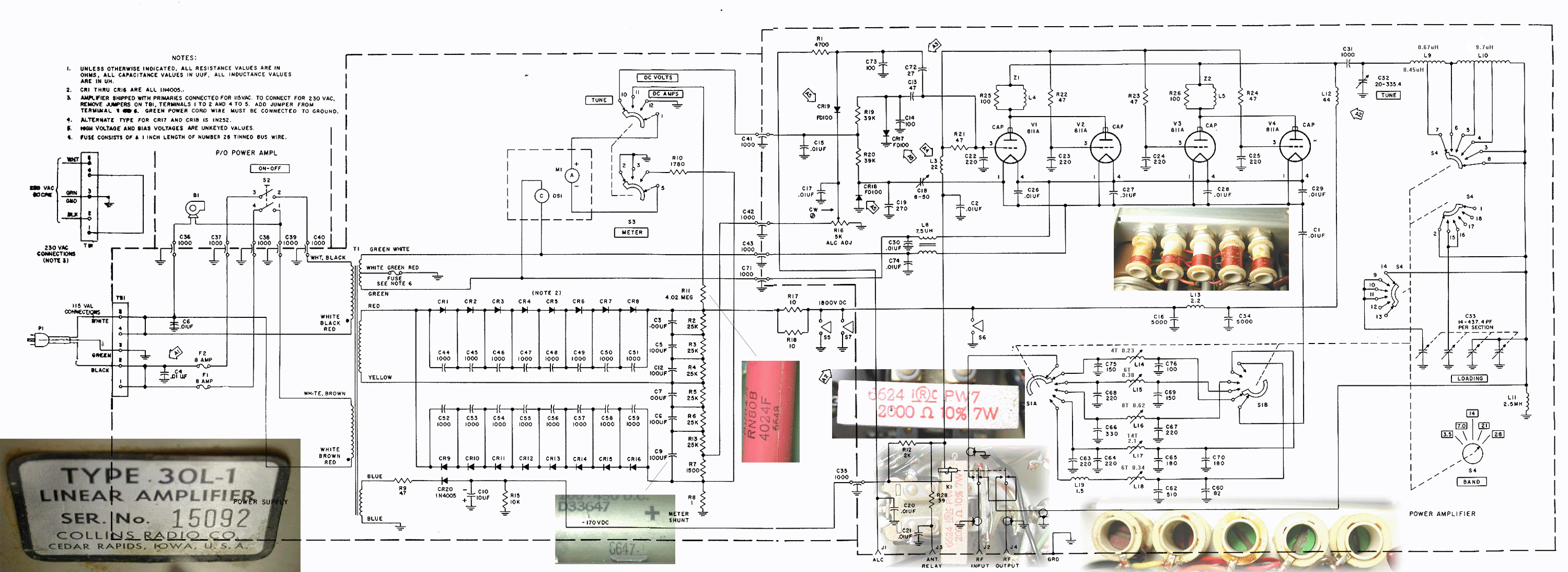

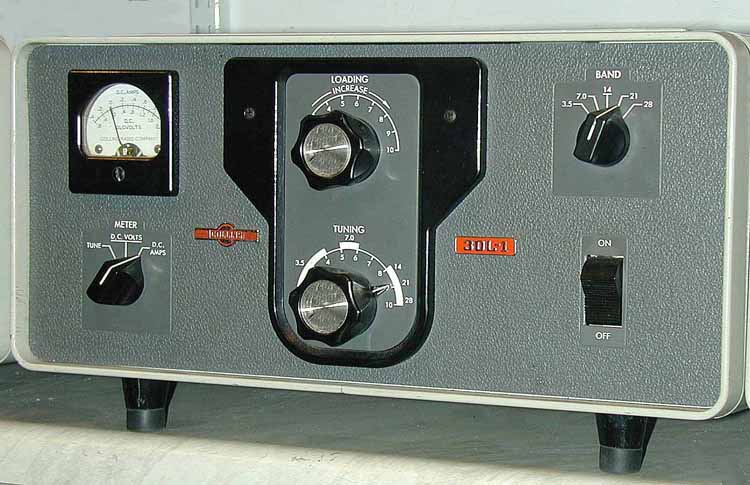

pink01_next.gif 500 Watt Linear Amplifier (without tube >)
    3.5 to 29.7MHz     Tubes Four 811A triodes
    Drive 70W PEP  Output 500W

$520.00
(1961年)
$3,533.00 in 1977

$797.25
($1,250.00)

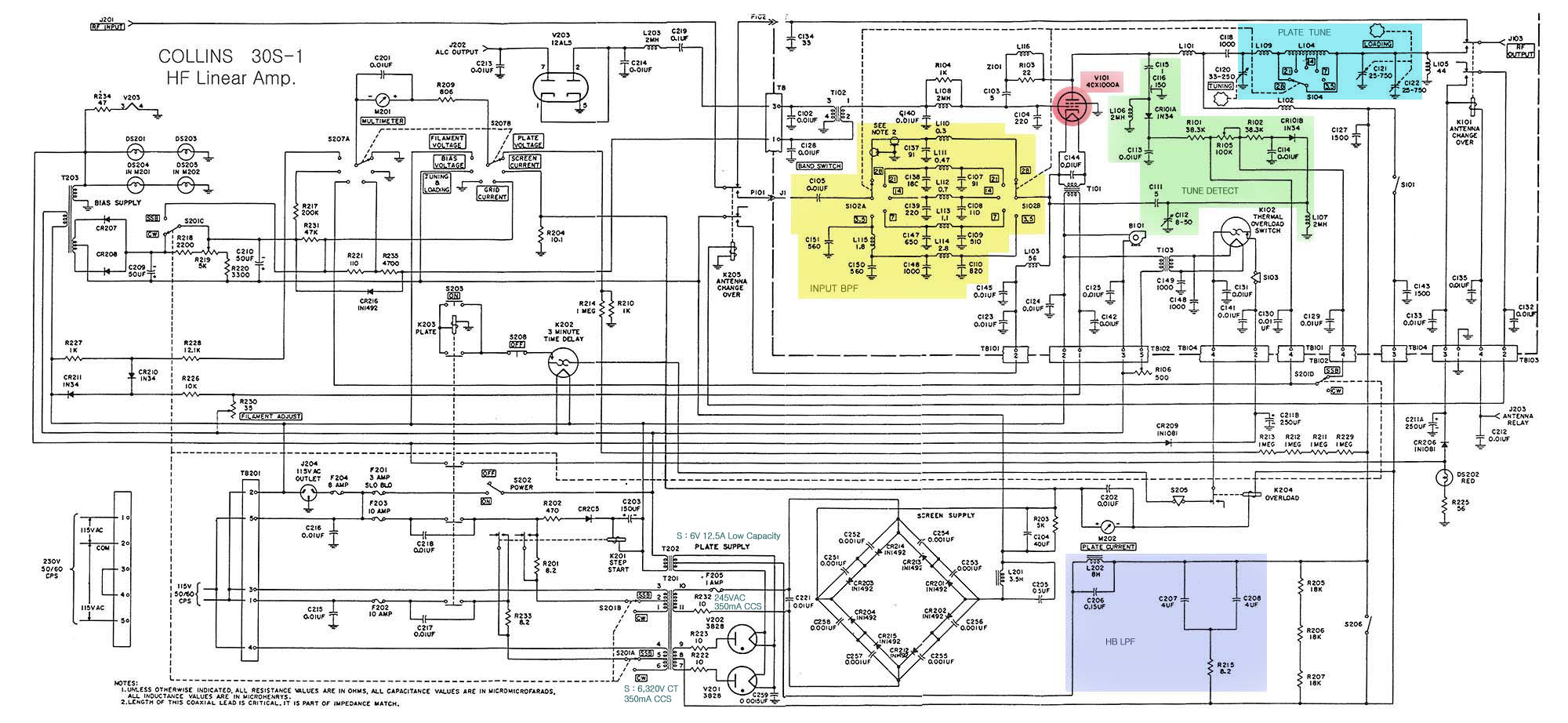

30S-1

1959~

pink01_next.gif 1000 Watt Linear Amplifier
    3.5 to 29.7MHz
    Tubes 4CX1000A ceramic tetrode
    Drive 80W PEP  Output 1300W PEP

$1.470.00
(1959年)

$7,049.00

in 1977

$1,536.17
($2,125.00)



link

KWM-1

1957~

CW/SSB Transceiver   PTO type 70K-1
    14 to 30MHz in 10 bands   100watts into 50Ω
    516F-1(115V)  516E-1(12V), 516E-2(28V)

$770.00
(1957年)

973.91
($1571.50)

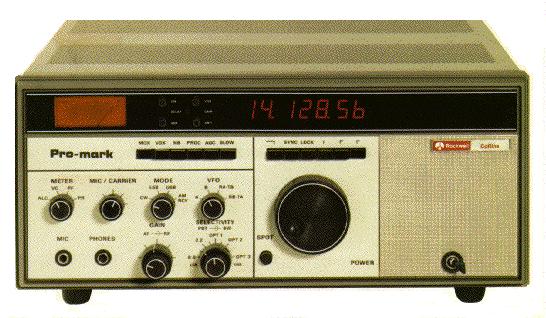

KWM-380

1979~

Solid State Transceiver
    1.6 to 30MHz 10Hz step    100watts into 50Ω
    100% Solid State

$2,995.00
(1979年)

2,700.08
($3,550.00)

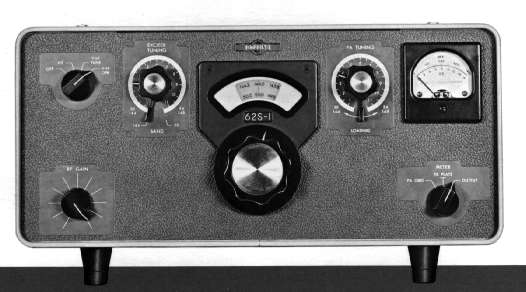

62S-1

1963~

square19_green.gif VHF Transverter (S-Line,KWM-2)
    AM,SSB or CW   Final 4X150A
    49.6 to 54.2MHz  and 143.6 to 148.2MHz

$895.00
(1965年)

1,665.00
($1,975.00)

32S-3A

1969~

circle12_red.gif CW/SSB Transmitter    Final two 6146
    3.4 to 30MHz in 28 bands   100watts into 50Ω
    516F-2(115V)    PTO type 70K-2

$1,100.00

$3,250.00

in 1977

$1,096.50
(+power)

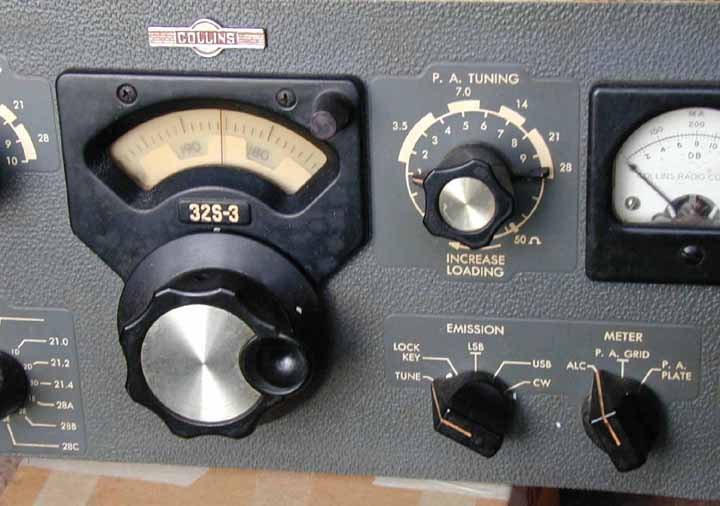

32S-3

1963~

circle12_red.gif CW/SSB Transmitter    Final two 6146
    3.4 to 30MHz in 14 bands   100watts into 50Ω
    516F-2(115V)    PTO type 70K-2

$750.00

w $589.90
r $866.25

32S-2

1958~

circle12_red.gif CW/SSB Transmitter    Final two 6146
    3.4 to 30MHz in 14 bands   100watts into 50Ω
    516F-2(115V)    PTO type 70K-2

$670.00

$905.00

32S-1

1958~

circle12_red.gif CW/SSB Transmitter    Final two 6146
    3.4 to 30MHz in 14 bands   100watts into 50Ω
    516F-2(115V)    PTO type 70K-2

$590.00

$329.83

75S-3C

1967~

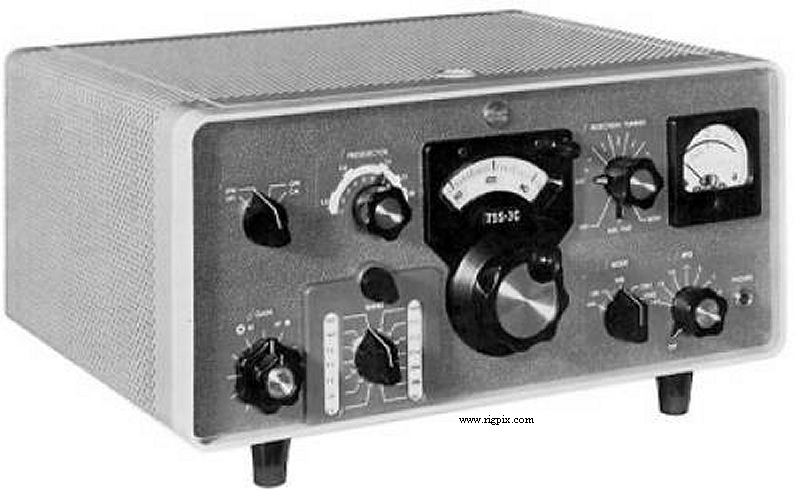

circle12_blue.gif AM/CW/SSB Receiver
    PTO type 70K-2
    3.4 to 30MHz in 28 bands

$680.00

$3,000.00

in 1977

$1,410.50

75S-3B

1964~

circle12_blue.gif AM/CW/SSB Receiver
    PTO type 70K-2
    3.4 to 30MHz in 14 bands

$680.00

$727.55

75S-3A

1961~

circle12_blue.gif AM/CW/SSB Receiver
    PTO type 70K-2
    3.4 to 30MHz in 28 bands

$750.00

$985.00

75S-3
*

1961~

circle12_blue.gif AM/CW/SSB Receiver
    PTO type 70K-2
    3.4 to 30MHz in 14 bands

$680.00

$599.18

75S-2

1958~

circle12_blue.gif AM/CW/SSB Receiver
    PTO type 70K-2
    3.4 to 30MHz in 14 bands

$575.00

$878.50

75S-1

1958~

circle12_blue.gif AM/CW/SSB Receiver
    PTO type 70K-2
    3.4 to 30MHz in 14 bands

$495.00

$345.78

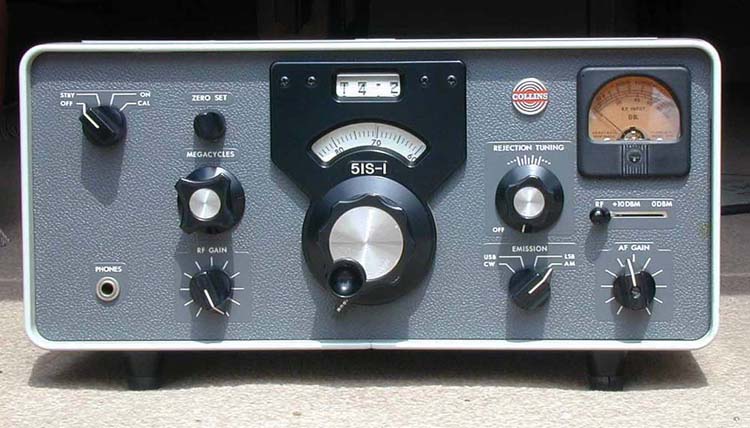

51S-1

1959~

circle12_blue.gif Communications Receiver    PTO : 70K-7
    AM, SSB or CW         200kHz to 30MHz
    51S-1  115V AC,  51S-1A  28V DC

$680.00

$1,445.79

75A-4

1955~

circle12_blue.gif AM/CW/SSB Receiver     PTO : 70E-24
    160, 80, 40, 20, 15, 11 and 10m
    amateur bands
    115V AC     22tubes

$495.00
(Canadian
$840.00)

$1,015.60

75A-3

1952~

circle12_blue.gif AM/CW/NBFM Receiver    PTO : 70E-12
    160, 80, 40, 20, 15, 11 and 10m
    amateur bands
    115V AC     18tubes

$530.00

$533.08

75A-2

1950~

circle12_blue.gif AM/CW/NBFM Receiver   PTO : 70E-12
    160, 80, 40, 20, 15, 11 and 10m
    amateur bands
    115V AC     17tubes

$420.00

$349.42

75A-1

1946~

circle12_blue.gif AM/CW Receiver  PTO : 70E-7
    160, 80, 40, 20, 15, 11 and 10m
    amateur bands
    115V AC     14tubes

$375.00

$444.55

51J-4

1957~

circle12_blue.gif Communications Receiver   PTO : 70E-15
    AM, MCW, CW         500kHz to 30.5MHz
    115V AC    19tubes

$1,000.00

$894.67

51J-3

1955~

circle12_blue.gif Communications Receiver   PTO : 70E-15
    AM, MCW, CW         500kHz to 30.5MHz
    115V AC    19tubes  (Military version R388)

$1,000.00

$602.50

51J-2
<< ?

1950~

circle12_blue.gif Communications Receiver   PTO : 70E-7A
    AM, MCW, CW         500kHz to 30.5MHz
    115V AC    16tubes  (Military version R381)

$875.00

$521.87

51J-1

1949~

circle12_blue.gif Communications Receiver   PTO : 70E-7A
    AM, MCW, CW         500kHz to 30.5MHz
    115V AC    16tubes

$875.00



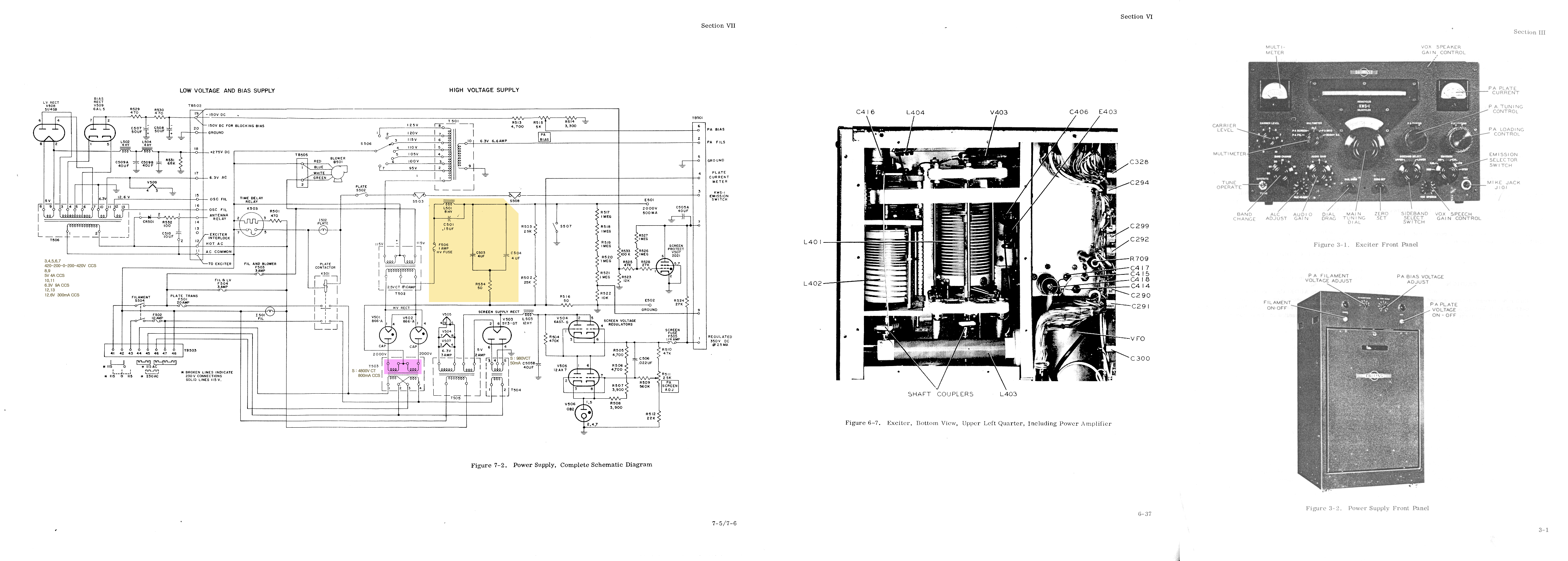

KWS-1

* *

1955~

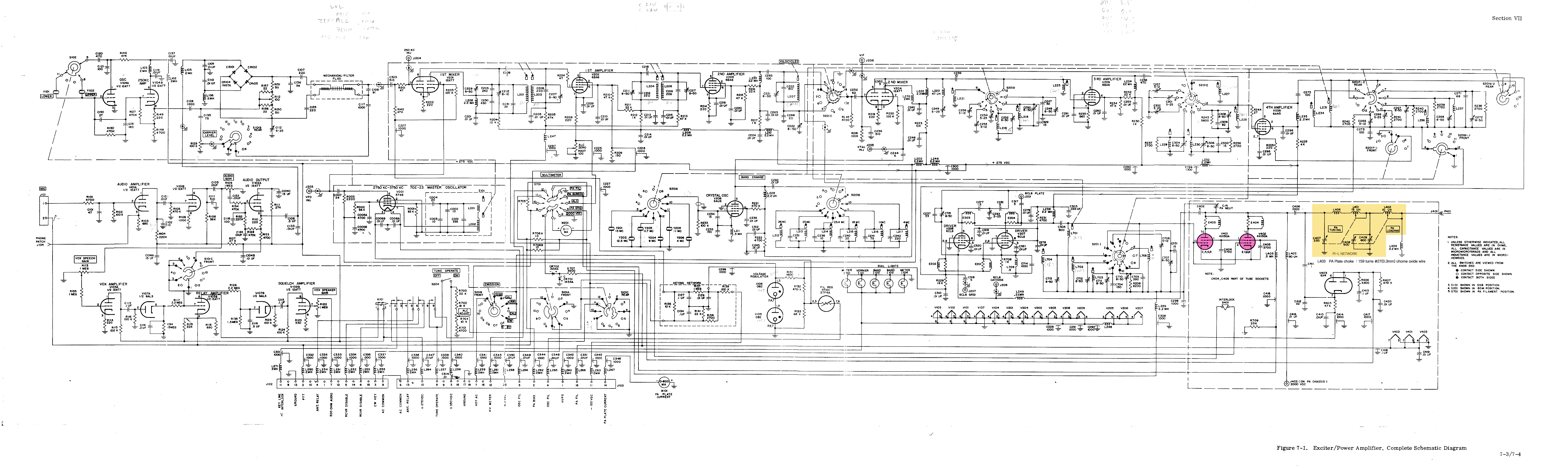

circle12_red.gif 1000 Watt SSB/AM/CW Transmitter

    PTO : 70E-23
    SSB, CW, AM
    80, 40, 20, 15, 11 and 10 meters
    115V or 230V AC
    33tubes  Final two 4X150A
                (4X250Bs in laster version)


$1.955.00

$1,368.40






KW-1

1950~

circle12_red.gif 1000 Watt AM/CW Console Transmitter

    160, 80, 40, 20, 15, 11 and 10 meters
    115V or 230V AC
    27tubes  Final two 4-250A
    PTO : 70E-8

$3,850.00

$8,600.00

32V-3

1951~

circle12_red.gif AM/CW/NBFM Transmitter
    80, 40, 20, 15, 11 and 10 meters
    115V  AC
    16 tubes  Final 4D32
    PTO : 70E-8B

$475.00

$800.00

32V-2

1949~

circle12_red.gif 150 Watt AM/CW Transmitter
    80, 40, 20, 15, 11 and 10 meters
    115V  AC
    17 tubes  Final 4D32
    PTO : 70E-8

$575.00

$412.51

32V-1

1946~

circle12_red.gif 150 Watt AM/CW Transmitter
    80, 40, 20, 15, 11 and 10 meters
    115V  AC
    17 tubes  Final 4D32
    PTO : 70E-8

$475.00

$630.25

30K-1

1946~

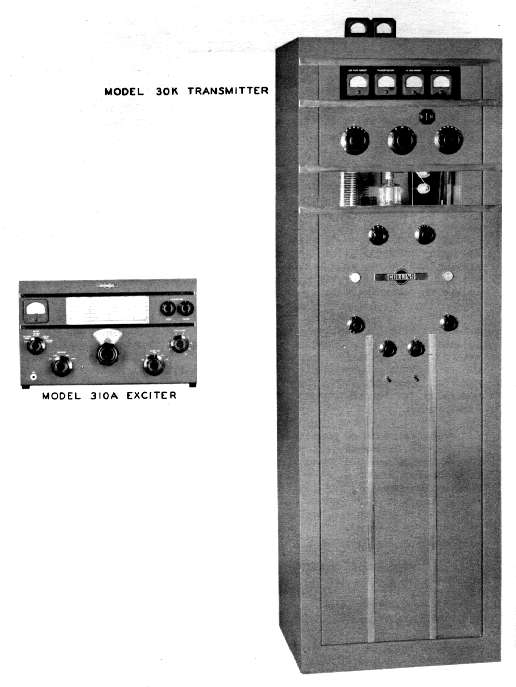

circle12_red.gif AM/CW Console Transmitter
    80, 40, 20, 15, 11 and 10 meters
    115V  AC   500wattes CW, 375wattes AM
    12 tubes  Final 4-125A
    Excitation 310-A

$1,450.00

$2,117.00


310B-1

310C-2

1947~

circle12_purple.gif RF Exciter       PTO : 70E-8(6SJ7)
    5 tubes

$100.00



310C-1

1947~

circle12_purple.gif RF Exciter       PTO : 70E-8(6SJ7)
    4 tubes

$85.00



310B-3

1947~

circle12_purple.gif RF Exciter       PTO : 70E-8(6SJ7)
    10 tubes

$190.00

$830.00

310B-1

1947~

circle12_purple.gif RF Exciter       PTO : 70E-8(6SJ7)
    10 tubes

$190.00

$311.50

310A-3

1946~

circle12_purple.gif RF Exciter
    PTO : 70E-8(6SJ7)
    11 tubes

$100.00

$610.00

310A

1946~

circle12_purple.gif RF Exciter    CW
    PTO : 70E-8(6SJ7)
    9 tubes

$100.00

$610.00

70E-8

1946~

circle13_pink.gif Permeability Tuned Oscillator
    1.6MHz to 2MHz
    (VFO) 6SJ7(5693) Tube

$40.00



70K-2


1958~

circle13_pink.gif Permeability Tuned Oscillator(PTO)
    S-Line covered the range
    2.7MHz to 2.5MHz
    6AU6 / 7543 Tube

$00.00



312B-3

1958~

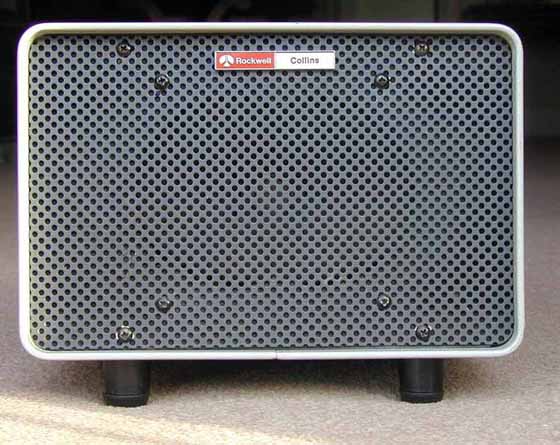

watermelon02_red.gif Speaker for S-Line,KWM-2, 51S-1
     Speaker 5"×7"  4 ohm

$27.50

$201.38

312B-2
312B-1

1958~

watermelon02_red.gif Speaker Console for KWM-1
watermelon02_red.gif Speaker for KWM-1

$205.00

$25.00



399C-1

1959~

watermelon02_red.gif Speaker/PTO for KWM-2
     KWM2 for sprit frequency operation

$164.00

$1,075.00

MP-1

195?~

watermelon02_red.gif DC 12V Mobile Power Supply
                for KWM-2 or KWM-1

$000.00

$680.00
in 1977

$104.43

516E-1

516E-2

1961~

watermelon02_red.gif DC 12V Power Supply for KWM-2

watermelon02_red.gif DC 28V Power Supply for KWM-2

$262.00


$445.00

$52.57

351D-2

1961~

watermelon02_red.gif Mobile Mount Kit for KWM-2

$110.00

$73.55

CC-3

1958~

watermelon02_red.gif Carrying Case for 312B-4 or 5, MP-1,TD-1

$00.00

$57.94

CC-2

1961~

watermelon02_red.gif Carrying Case for
    KWM-2(or 30L-1)and PM-2

$00.00

$140.80

DL-1
R

19??~

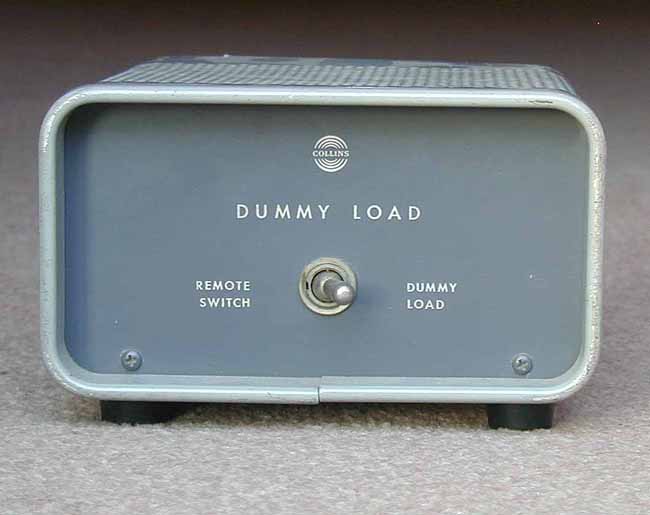

watermelon02_red.gif Dry Dummy Load
    100 watt

$00.00

$150.79

180S-1

19??~

watermelon02_red.gif ANTENNA TUNER
    1KW pi network for matching

$00.00

$1,570.00
in 1977

$288.07

Noise Blanker

136A-1

19??~

watermelon02_red.gif Noise Blanker for 75S-1

$120.00



Noise Blanker

136B-2

19??~

watermelon02_red.gif Noise Blanker for KWM-2

$120.00

$233.13

302C-3
*  *

19??~

watermelon02_red.gif SWR Meter (Directional Wattmeter)

$125.00

$249.00

CP-1

19??~

watermelon02_red.gif Crystal Pack

@$6.60

$255.28



TD-1

19??~

watermelon02_red.gif Dipole Antenna



$230.35



637T-1(2)

19??~

watermelon02_red.gif Dipole Antenna



$136.80

SM-1

19??~

watermelon02_red.gif Microphone

$32.00

$302.64



SM-2

19??~

watermelon02_red.gif Microphone

$48.00

$363.00



SM-3

19??~

watermelon02_red.gif Microphone

$65.00

$438.50



MM-1

19??~

watermelon02_red.gif Microphone

$25.00

$65.00
in 1977

$141.23



MM-2

19??~

watermelon02_red.gif Microphone

$44.00



  Microphone

MM-3

19??~

watermelon02_red.gif Microphone

$44.00



Instruction books





 Instruction books

$2.00





※ 작은사진 클릭하면 나오는 일부 큰사진은 인터넷상에서 찾아 링크해 놓았으므로 빨리 안나올 수도 있음을 알려드립니다.
Eimac


S-Line
(SSB /CW TX)

SSB

1975?





1958

TX  :  32S-1, 32S-2, 32S-3, 32S-3A
RX  :  75S-1, 75S-2, 75S-3, 75S-3A, 75S-3B, 75S-3C
RX  :  51S-1
VHF Transverter : 62S-1
TRX  : KWM-2, KWM-2A
Amp. :  30S-1, 30L-1

SSB/AM
(SSB / CW / AM TX)

AM/SSB


1955

TX  :  KWS-1
RX  :  75A-4

A-Line
(AM / CW TX)

AM




1946

TX  :  KW-1
TX  :  32V-3
RX  :  75A-2, 75A-3
RX  :  51J Series


Art Collins (1909-1987) - operating the "A-Line"

































       Art Collins (1909-1987) - operating the "A-Line

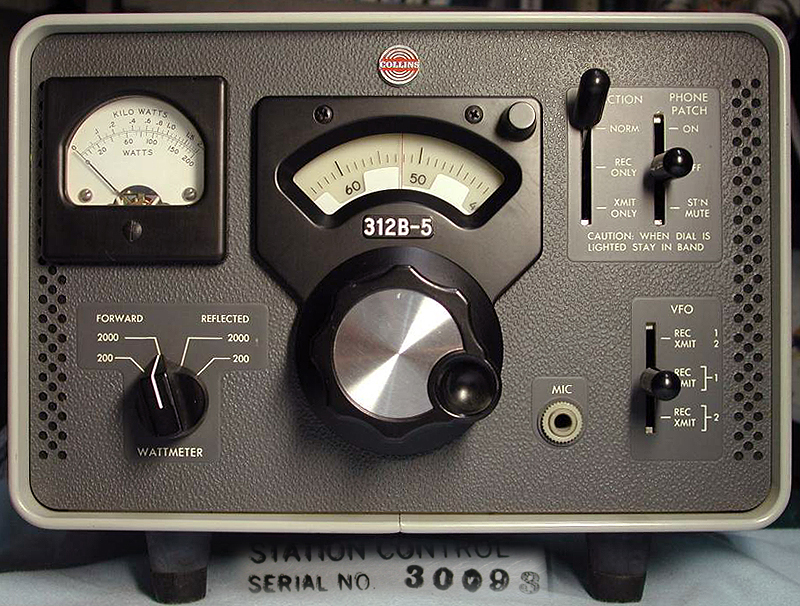

312-B5

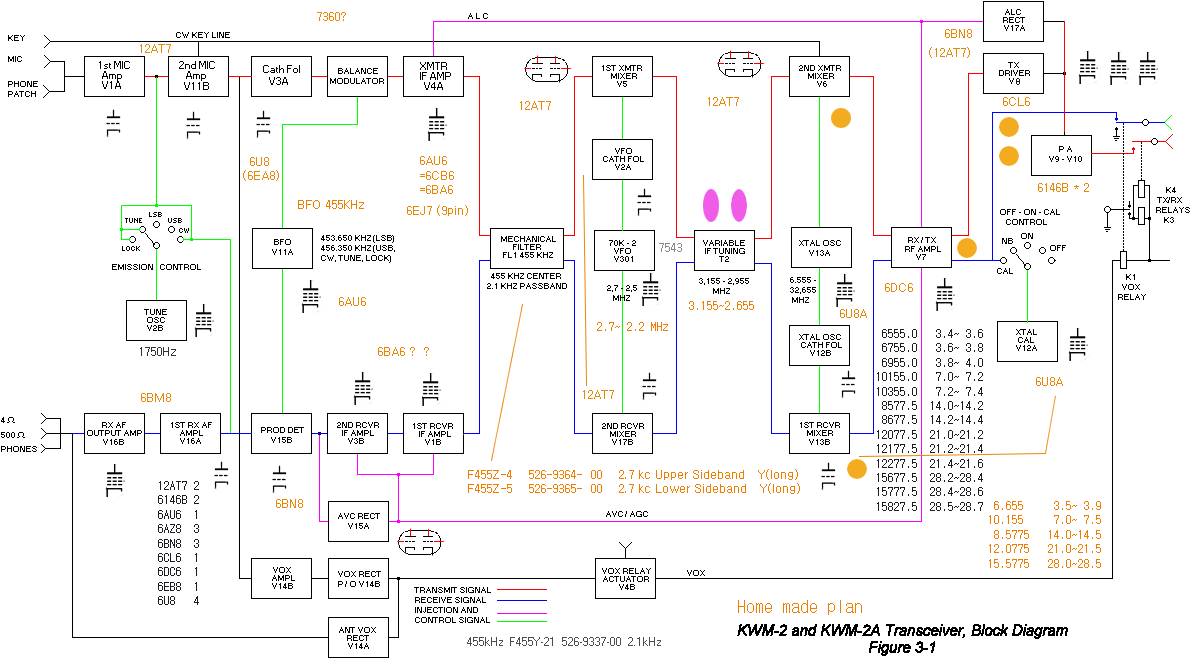

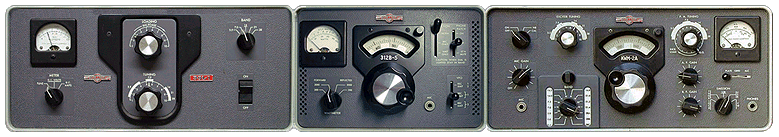

KWM-2A SET

30L-1

312B-5

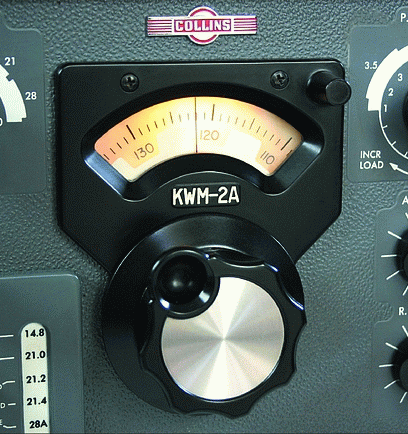

KWM-2A



VFO

XMIT (송신)

REC (수신)



REC/XMIT (.신)

REC/XMIT (.신)





옛날에는 꿈의 Station 이었는데..........   지금은 ? ! ? !     ......    아직도 .....ㅇㅇㅇ
 The past, the Station was a dream .......... And now? ! ? ! ...... Yep ..... still ㅇㅇㅇ













 "Wing"                1933,                          1934,                      1945            1970               1975

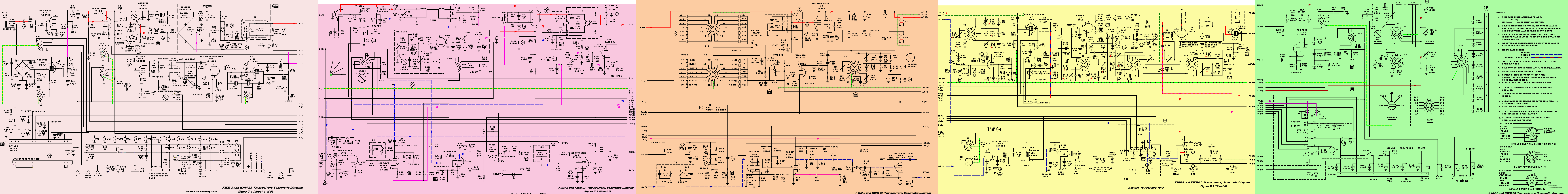

KWM-2A SET

S-LINE SET










http://cq.mykit.com





UTC

Seoul

Pacific

Eastern
