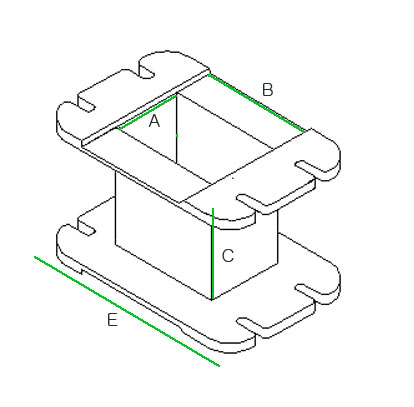

Tranformer Bobbin
´ÜÀ§ : mm
±Ô °Ý
A
B
C
E
EI-19X5.4
5.4
5.4
8.6
16.4
EI-19X7.8
5.4
7.8
8.6
18.1
EI-24X7.4
6.3
7.6
10.3
19.3
EI-28X11
8.3
11.1
14.3
25.5
EI-35X10
9.8
10.2
16.9
25.7
EI-35X10
10.5
10.3
15.3
24.5
EI-41X13.5
13.3
13.5
18.8
30.9
EI-41X14
13.4
14.1
18.8
32.1
EI-41X17.5
13.5
17.5
19
35
EI-41X21.5
13.3
21.5
18.7
38.5
EI-48X18
16.3
18.3
22
36.2
EI-54X18
18.5
18.5
21.5
35
EI-54X21
18.5
21
25
43
EI-54X22
18.5
22
25
43
UI-57X15
19.4
15.1
52.7
28.9
EI-57X20
19.5
20.5
25.7
41.5
EI-57X25
19.7
25.2
25.5
47.9
EI-60X30
20.7
30.3
26.9
56.3
EI-66X26
22.8
26.5
30.1
49.9
EI-66X29
22.6
29
30.2
56.9
EI-74X42
23.5
42.3
34.2
59.4
EI-76.2X14
27.2
14.2
35
30.3
EI-76.2X30
26
30.2
34.6
62.7
EI-76.2X35
25.8
35.1
35
67.5
EI-76.2X42
26.3
42.6
35.2
74
EI-85.8X30
29
31.1
40
65.2
EI-85.8X42
29.1
42.3
39.1
77.6
EI-85.8X45
29.5
45
39.2
82
EI-96X25
32.4
25.3
42
67
EI-96X32
32.2
32.5
44.1
61.1
EI-96X40
33
40.3
44.6
78
EI-96X47
32.5
47.1
43.5
76.3
EI-96X51
32.5
51.4
43.3
95.2
EI-96X61
32.7
61.3
45.6
82.5
EI-105X45
36.1
45.3
48.7
88.4
EI-105X50
36.3
50.8
49.2
93.7
EI-105X55
36
55.8
49.5
98.9
EI-105X60
36.4
60.8
48.8
100.2
EI-111X70
35.5
71.6
52.6
122.7
EI-114X52
39
51.8
51.5
97.1
EI-133.2X55
45.3
55.5
62.3
110
EI-133.2X65
45.3
65.5
62.3
120
EI-133.2X85
46
86
60
144.2
EI-114X52
39
51.8
51.5
97.1
EI-152.4X64
52.4
64.4
70
121.3
EI-152.4X85
52
84.6
69.4
148.8
