½ÇÁ¦ ÃøÁ¤ Ç¥½Ã ¿¹
°í°¨µµ 180MHz LCD Frequency Counter Module
FC-180M
½ÇÁ¦ ÃøÁ¤ Ç¥½Ã ¿¹
1MHz ~ 180MHz
MF / HF / VHF 180MHz¿ë
°¡°Ý 27,000 (¼Û·á \2,500 º°µµ)
¿ëµµ : »ê¾÷¿ë, ½ÇÇè¿ë, 1.8MHz~170MHz¾ÈÅ׳ª¾Æ³¯¶óÀÌÀú, DIP meter¿ë Ä«¿îÅÍ µî.....
Àü¾Ð ¹× ¼Ò¸ðÀü·ù : DC9V or DC12V 60mA (Idle:24mA, 500kHz:16mA)
|
Ç¥½Ã ¿¹ |
144.190,0 MHz |
|
Resolution |
100Hz |

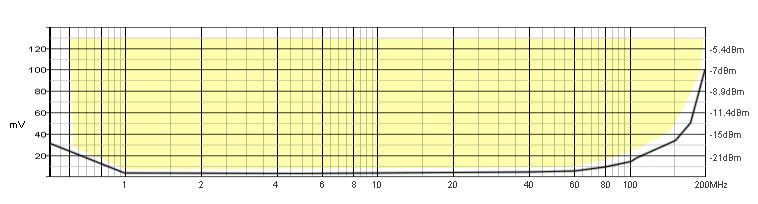

°í°¨µµ(High Sensitivity) (50§Ù)
|
MHz |
0.1§Ö |
0.5§Ö |
1§Ö |
5§Ö |
10§Ö |
20§Ö |
30§Ö |
50§Ö |
70§Ö |
80§Ö |
90§Ö |
100§Ö |
MHz |
|
dBm |
-13 |
-17 |
-36 |
-53 |
-48 |
-43 |
-40 |
-33 |
-29 |
-27 |
-25 |
-24 |
dBm |
|
mV |
50 |
32 |
3.5 |
0.5 |
0.89 |
1.6 |
2.3 |
5 |
8 |
10 |
12.6 |
14.1 |
mV |
|
MHz |
110§Ö |
120§Ö |
130§Ö |
140§Ö |
150§Ö |
160§Ö |
170§Ö |
180§Ö |
190§Ö |
200§Ö |
210§Ö |
220§Ö |
MHz |
|
dBm |
-22 |
-20 |
-18 |
-17 |
-16 |
-15 |
-13 |
-11 |
-8 |
-7 |
-6 |
-2 |
dBm |
|
mV |
17.8 |
22.4 |
28.2 |
31.6 |
35.4 |
39.8 |
50.1 |
63 |
89 |
100 |
112 |
178 |
mV |
