SLC-5020A
 The most practical and accurate L/C measuring instrument in laboratories, etc.

Measure without shaking within the measurement range.

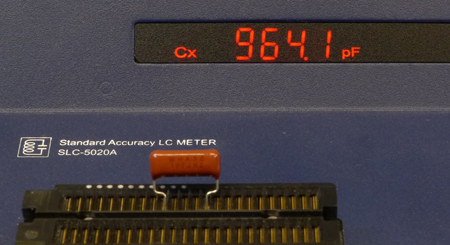

ECW-HA3C102JB
Panasonic Polypropylene (PP)

0.001 uF 5% 1.6KV
1000 pF

ECW-HA3C162HQ
Panasonic Polypropylene (PP)

0.0016 uF 5% 1.6KV
1600 pF

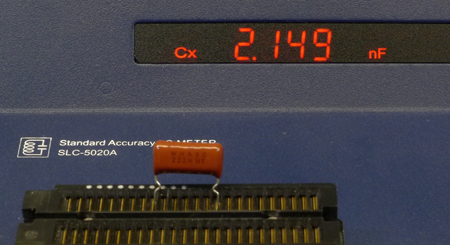

ECW-HA3C222HQ
Panasonic Polypropylene (PP)

0.0022 uF 3% 1.6KV
2200 pF

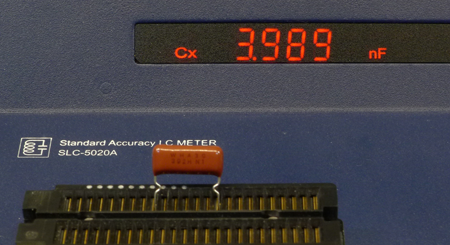

ECW-HA3C392HQ
Panasonic Polypropylene (PP)

0.0022 uF 3% 1.6KV
3900 pF

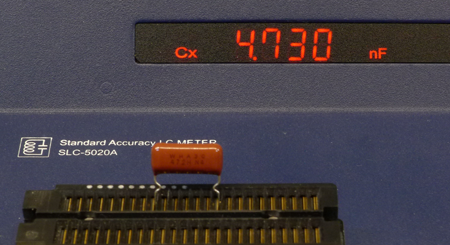

ECW-HA3C472HQ
Panasonic Polypropylene (PP)

0.0022 uF 3% 1.6KV
4700 pF

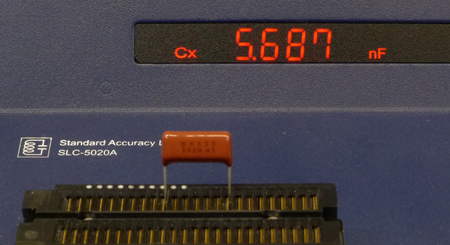

ECW-HA3C562H
Panasonic Polypropylene (PP)

0.0056 uF 3% 1.6KV
5600 pF

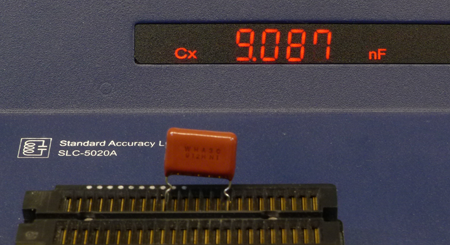

ECW-HA3C912HQ
Panasonic Polypropylene (PP)

0.0091 uF 3% 1.6KV
9100 pF

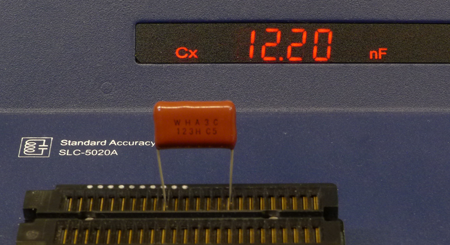

ECW-HA3C123H
Panasonic Polypropylene (PP)

0.012 uF 5% 1.6KV
12 nF

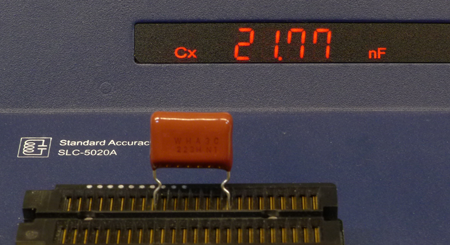

ECW-HA3C223HQ
Panasonic Polypropylene (PP)

0.022 uF 3% 1.6KV
22 nF

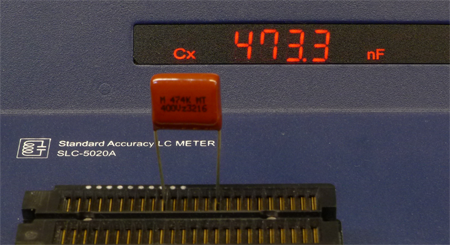

M 474K MT
0.47 uF 400V z3216
470 nF

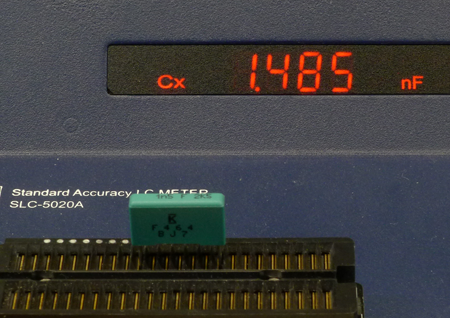

KEMET F464 1n5F

Single Metallized Polypropylene Film

1500 pF

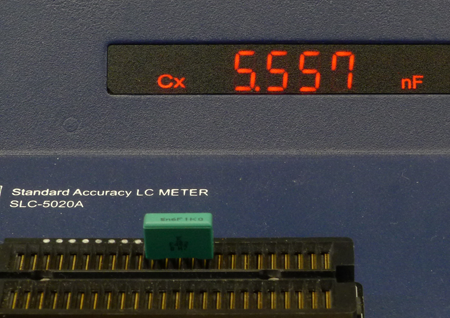

KEMET F462 5n6

Single Metallized Polypropylene Film


5600 pF

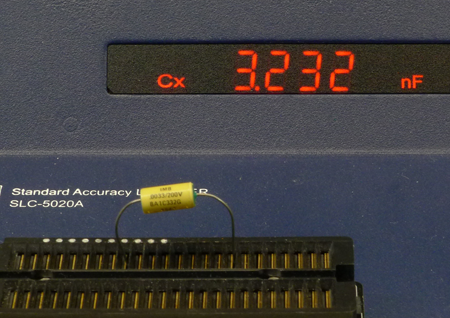

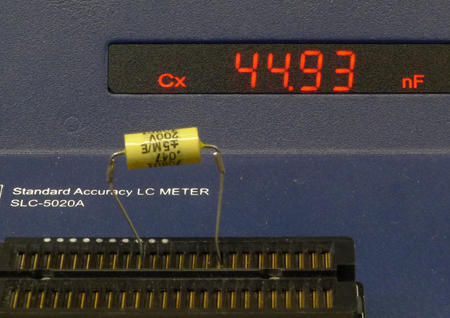

BA1C 332G

3300 pF

200V

47 nF

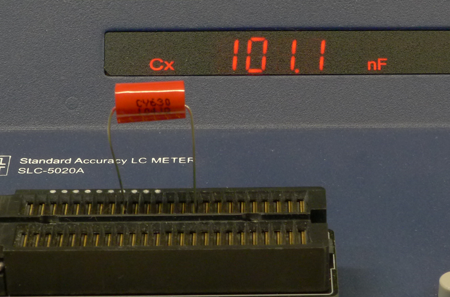

WMC2P1K

100 nF

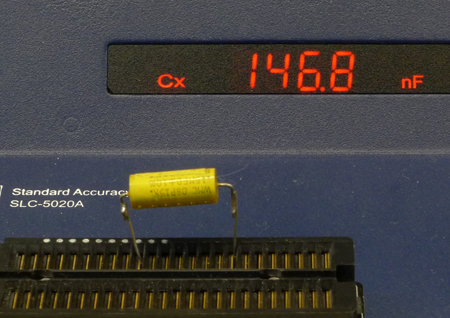

WMC08P15K

150 nF

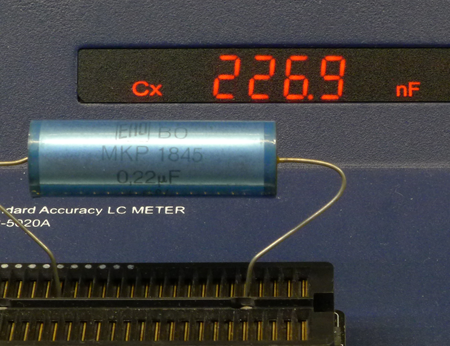

ERO MKP 1845

0.22 uF

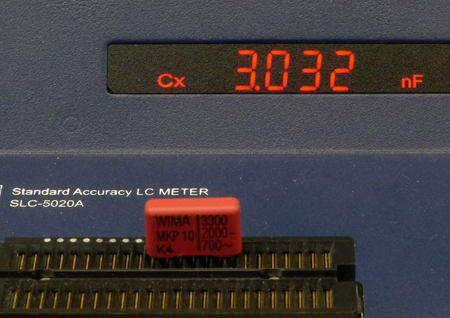

WIMA MKP 10

3300 pF

WIMA MKP 10

0.01 uF

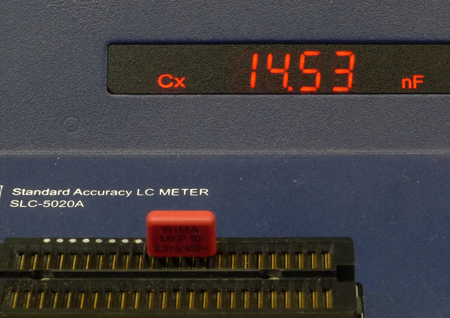

WIMA MKP 10

0.015 uF

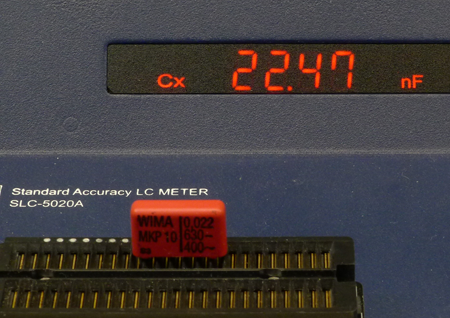

WIMA MKP 10

0.022 uF

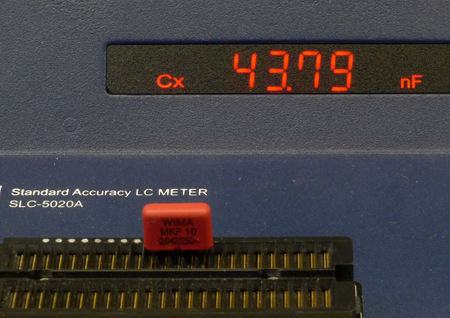

WIMA MKP 10

0.047 uF

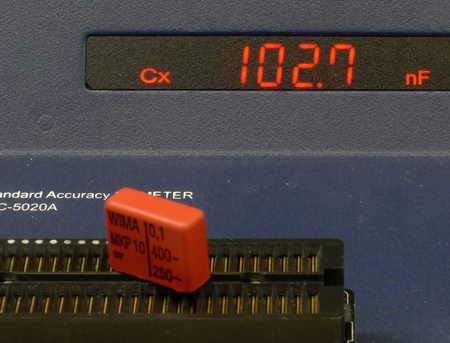

WIMA MKP 10

0.1 uF

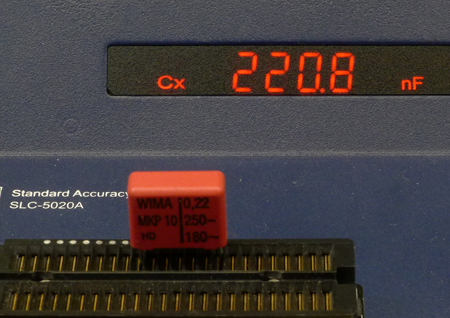

WIMA MKP 10

0.22 uF

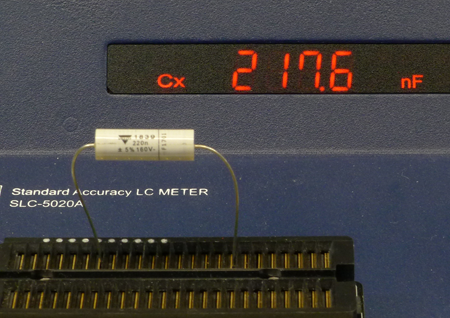

VISHAY1839

0.22 uF

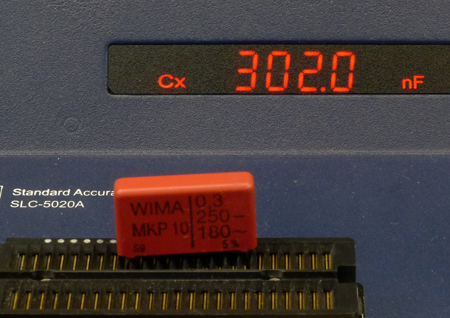

WIMA MKP 10

0.3 uF

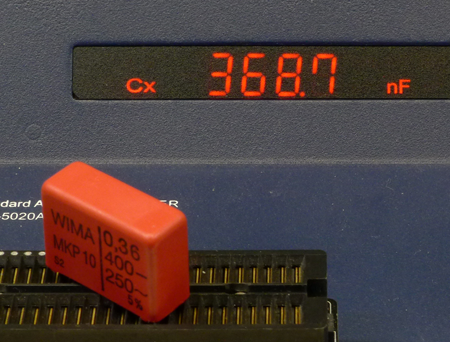

WIMA MKP 10

0.36 uF

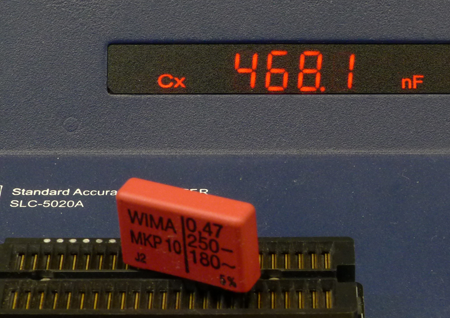

WIMA MKP 10

0.47 uF

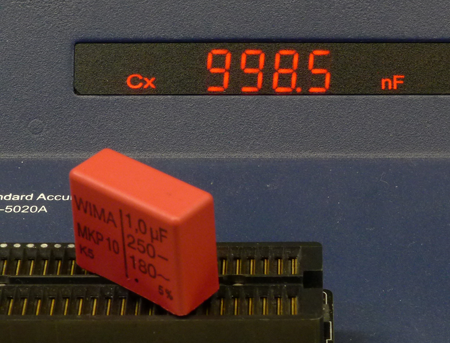

WIMA MKP 10

1 uF

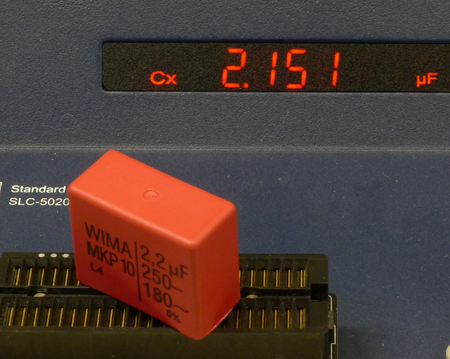

WIMA MKP 10

2.2 uF

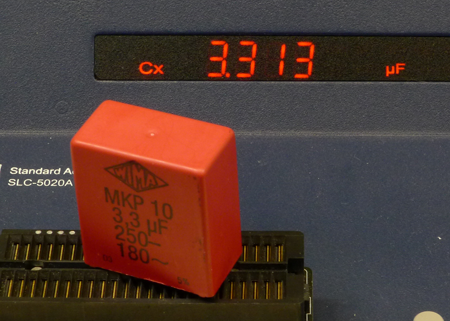

WIMA MKP 10

3.3 uF

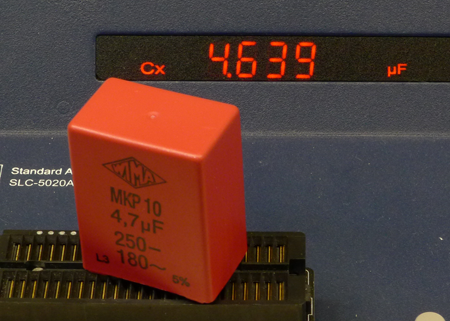

WIMA MKP 10

4.7 uF

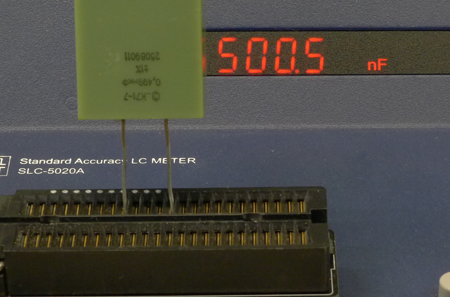

K71-7 0.499uF 250V 1%

Polystyrene Capacitor
(Styrol Capacitor)

0.499uF

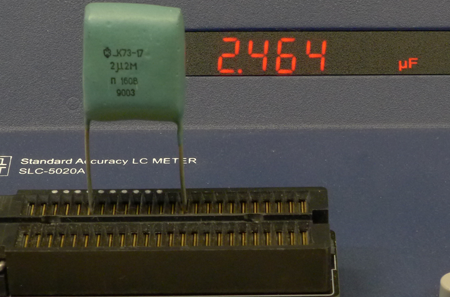

K73-17 2.2uF 160V 10%

Mylar Capacitor

2.2uF

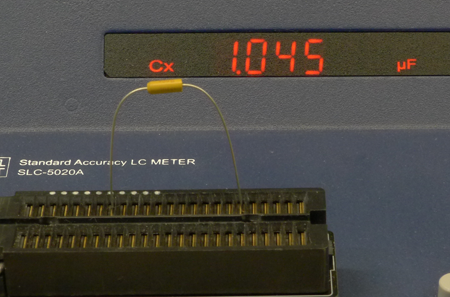

KEMET T322 1uF 35V 10%

Tantal

1uF

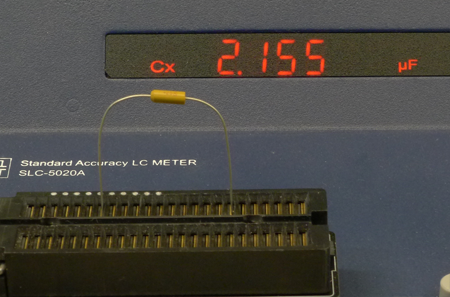

KEMET T322 2.2uF 35V 10%

Tantal

2.2uF

Vishey 173D 3.9uF 20V 10%

Tantal

3.9uF

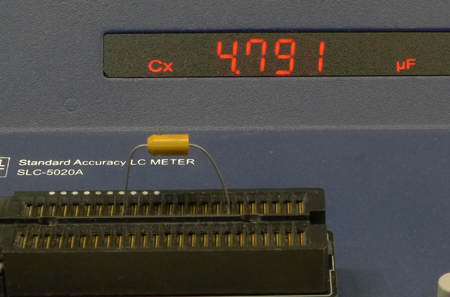

KEMET T322 4.7uF 35V 10%

Tantal

4.7uF

MKP 0.1uF 630V

Metallized Polypropylene

(7.7 x 14)

MKP 0.22uF 630V

Metallized Polypropylene

(10.7 x 14.3)

MKP 0.33uF 630V

Metallized Polypropylene

(11 x 19.6)

MKP 0.47uF 250V

Metallized Polypropylene

(8 x 19.5)

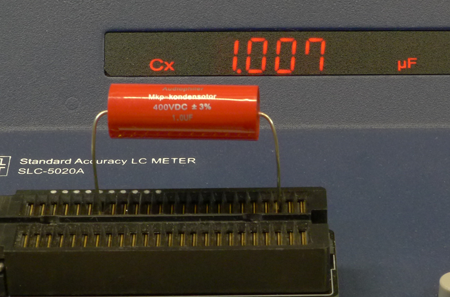

MKP 1uF 400V

Metallized Polypropylene

(11 x 31)

MKP 1.5uF 400V

Metallized Polypropylene

(13.5 x 31)


MKP 2.2uF 400V

Metallized Polypropylene

(16 x 31)

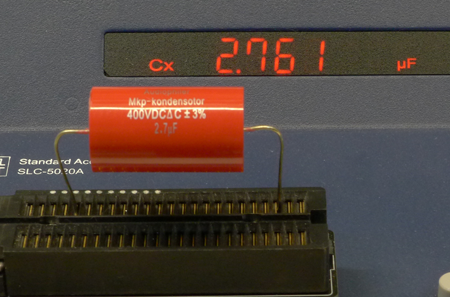

MKP 2.7uF 400V

Metallized Polypropylene

(18 x 31)

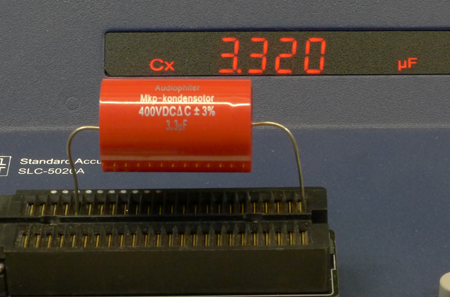

MKP 3.3uF 400V

Metallized Polypropylene

(20 x 31)

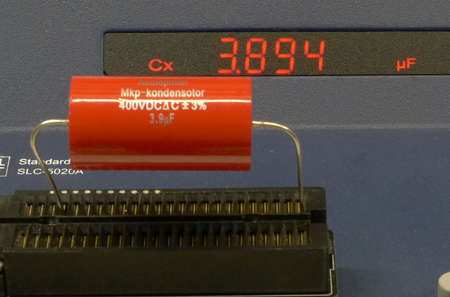

MKP 3.9uF 400V

Metallized Polypropylene

(20 x 36)

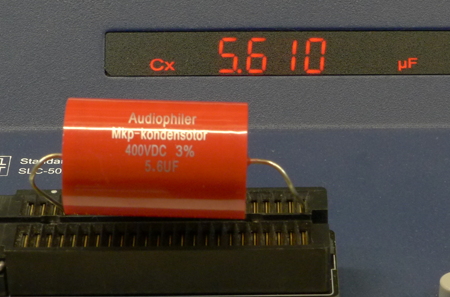

MKP 5.6uF 400V

Metallized Polypropylene

(23 x 36)

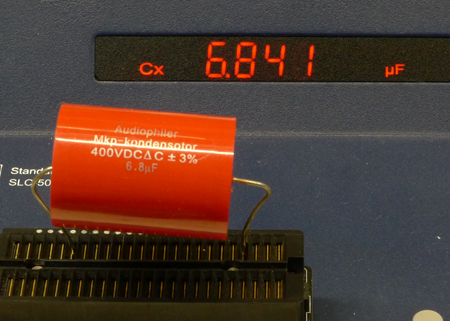

MKP 6.8uF 400V

Metallized Polypropylene

(25.5 x 36)

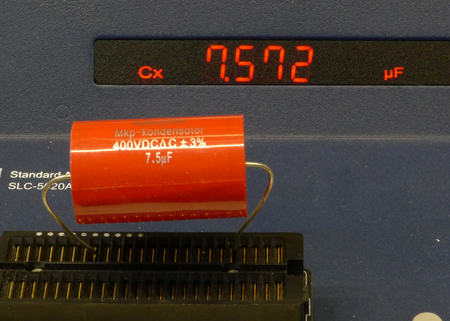

MKP 7.5uF 400V

Metallized Polypropylene

(22.5 x 37.5)

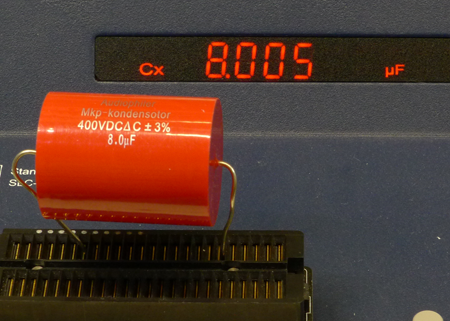

MKP 8uF 400V

Metallized Polypropylene

(27 x 36)

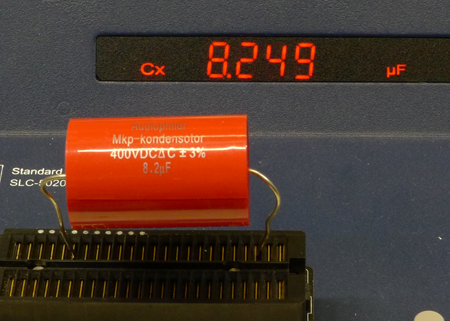

MKP 8.2uF 400V

Metallized Polypropylene

(23.5 x 36)

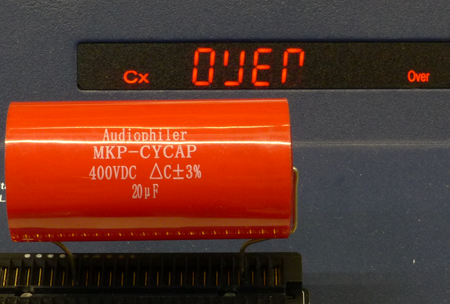

Range Over

Measuring range is up to 9.9uF.

If it is out of the measurement range, Over is displayed.

The measuring range is up to 9.999uF.

SLC-5020A

SLC-5020A can also be used to find impedance bridge LCR meter frequency, etc.
SLC-5020A는 임피던스 브리지 LCR 미터 주파수 등을 찾는 데에도 사용할 수 있습니다.

Measure without shaking within the measurement range.  Metal-polypropylene
측정 범위 내에서 흔들림 없이 측정이 됩니다

  Standard Accuracy LC Meter
  SLC-5020A
