Used in CoilCraft
164 and 165 series (data sheet)

4286A RF LCR Meter
(1 MHz to 1 GHz)
16092A Spring Clip Fixture

SLC-5020A

Measure without shaking within the measurement range.

4263B   16047A

Values in 32 average mode

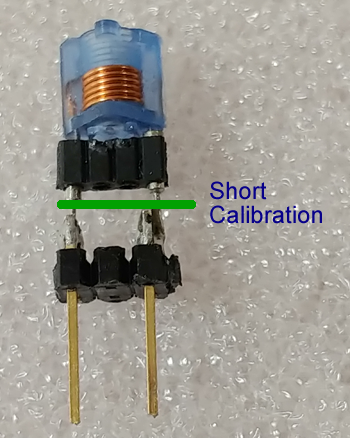

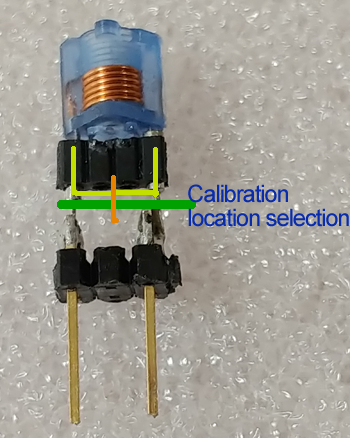

It is not easy to measure.
It might be easier if you have a dedicated probe.

#22 Wire

CoilCraft 164, 165 Un-shield Series
(No core measurement)

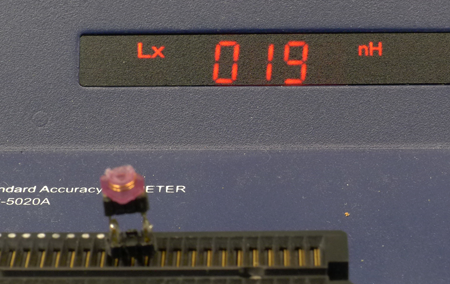

Modified 165-07 (≒1.505T)
D = 4mm, d = 0.5mm, ≒1.5T
≒165-01 No Core
(165-01  18 nH)

19 nH

164-04 No Core
77 nH

77 nH (+0 nH)

Lp : 88.7nH +15%
Ls : 83.1nH +8%
+6 nH
4263B  100kHz

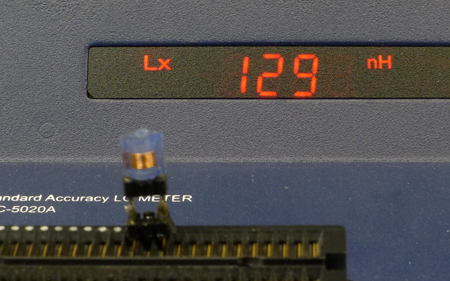

164-06 No Core
128 nH

129 nH (+1 nH)

Lp : 141.9nH +11%
Ls : 137.5nH +7%
+9 nH
4263B  100kHz

164-08 No Core
183 nH

181 nH (-2 nH)

Lp : 203.3nH +11%
Ls : 196.1nH  +7%
+13 nH
4263B  100kHz

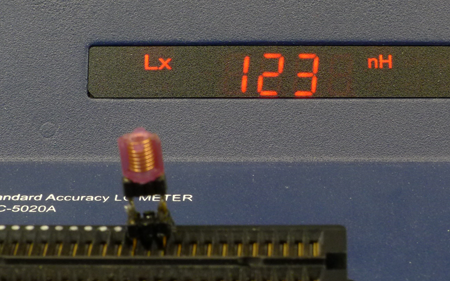

165-07 No Core
122 nH

123 nH (+1 nH)

Lp : 134.2nH +10%
Ls : 130.1nH  +7%
+8 nH
4263B  100kHz

CoilCraft 164, 165 Shield Series
(No core measurement)

164-04S No Core
56 nH

57 nH (+1 nH)

Lp : 79.8nH +41%
Ls : 67.4nH  +20%
+11 nH
4263B  100kHz

 Shield Coil +error

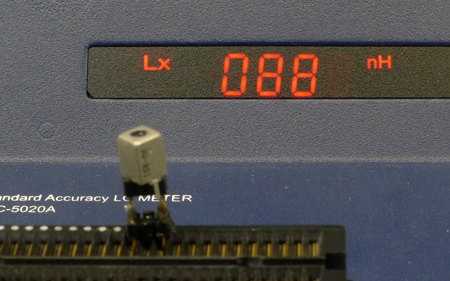

164-06S No Core
88 nH

88 nH (+0 nH)

Lp : 120.0nH +36%

Ls : 104.8nH  +17%
+17 nH
4263B  100kHz

 Shield Coil +error

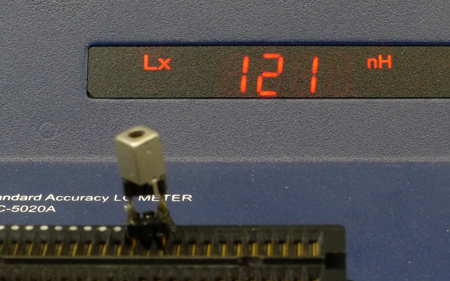

164-08S No Core
122 nH

121 nH (+0 nH)

Lp : 164.0nH +34%
Ls : 144.0nH +18%
+22 nH
4263B  100kHz

 Shield Coil +error

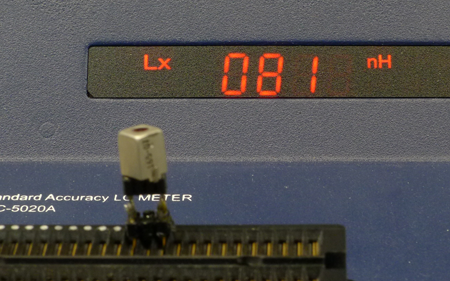

165-07S No Core
80 nH

81 nH (+1 nH)

Lp : 112.1nH +40%
Ls : 94.1H +18%
+14 nH
4263B  100kHz

 Shield Coil +error

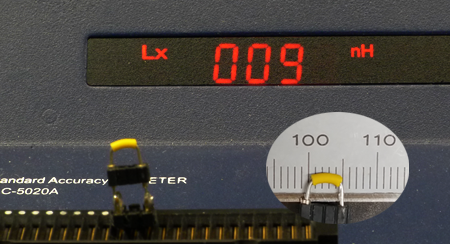

  Standard Accuracy LC Meter
  SLC-5020A
