SLC-5020A LC Meter<

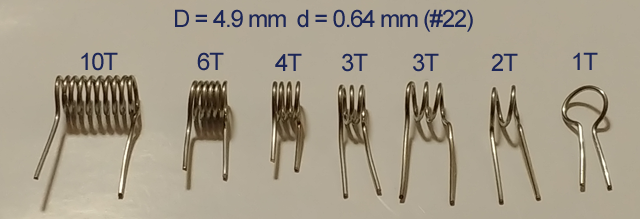

1 Turn ~ 10 Turn

	SLC-5020A Measure without shaking within the measurement range.

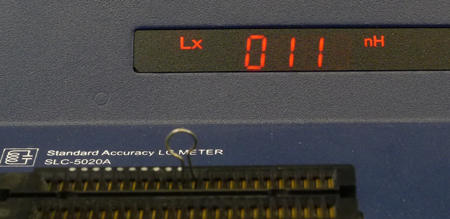

#22 d = 4.9 mm 1 Turn

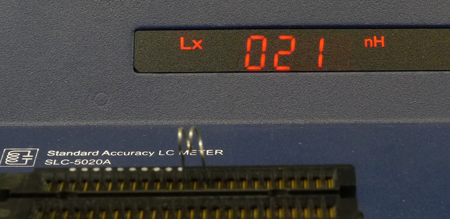

#22 d = 4.9 mm 2 Turn

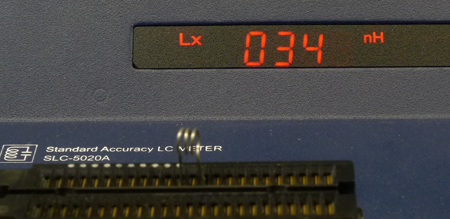

#22 d = 4.9 mm 3 Turn

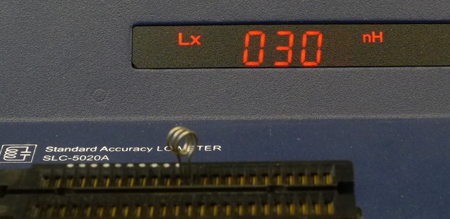

#22 d = 4.9 mm 3 Turn

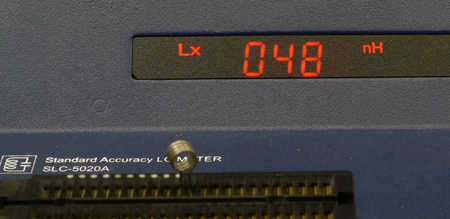

#22 d = 4.9 mm 4 Turn

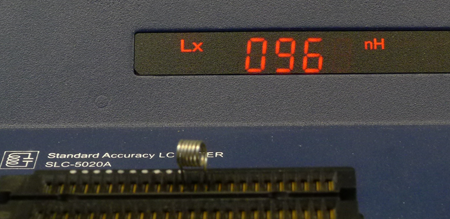

#22 d = 4.9 mm 6 Turn

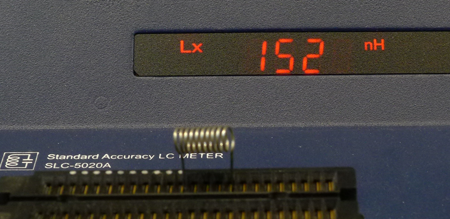

#22 d = 4.9 mm 10 Turn1482-N

The inductor should be calibrated by reference to the lead length included in the value.
인덕터는 리드 길이를 값에 포함 합니다. 감안하여 Calibration 해야 합니다.

nH measurement results can be obtained 2 to 5 seconds after inserting the inductor.
The time the vibration stops and the vibration subsides.

Do you want to have a standard?

Standard Accuracy LC Meter
SLC-5020A

Meter using precision LC resonance method
The display does not shake and measures accurately.
