SLC-5020A LC Meter<

Standard Inductor

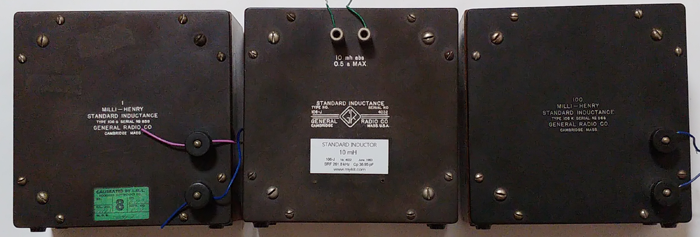

General Radio 106-G, J, K, 1481-C, D, F, H

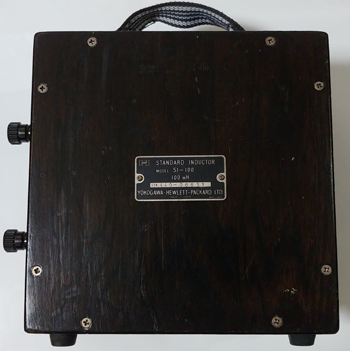

YHP SI-1, 100

These standard inductors are bulky and have large parasitic capacitances.
Since this capacitance is included in the resonant circuit, the resonant frequency is lowered and the inductance is measured to be large.
When measuring in Large L mode, the parasitic capacitance is removed and only the actual inductance is displayed.
In this case, the display is fixed (hold).

이러한 표준 인덕터는 부피가 크고 기생 용량이 큽니다.
이 커패시턴스는 공진회로에 포함되기 때문에 공진 주파수가 낮아지고 인덕턴스가 크게 측정됩니다.
Large L 모드에서 측정할 때 기생 커패시턴스는 제거되고 실제 인덕턴스 만 표시됩니다. 이 경우 표시가 고정(홀드)됩니다

	SLC-5020A All standard inductors are large inductors and are measured in large L mode. 모든 표준 인덕터는 Large 인덕터이며 Large L 모드에서 측정합니다.	4263B 16047A Values in 32 average mode

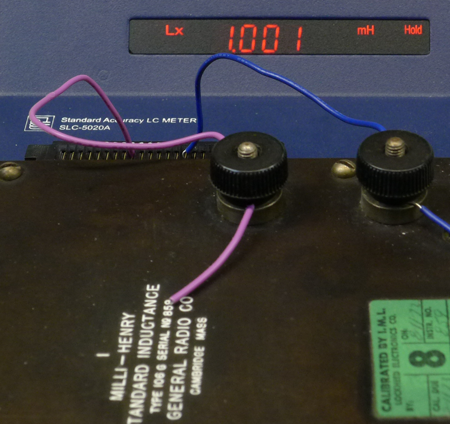

General Radio 106-G No. 859 1 mH SRF : 946 kHz Cp : 28.3 pF measure	1.001 mH	0.9999 mH 4263B 100 kHz 1V

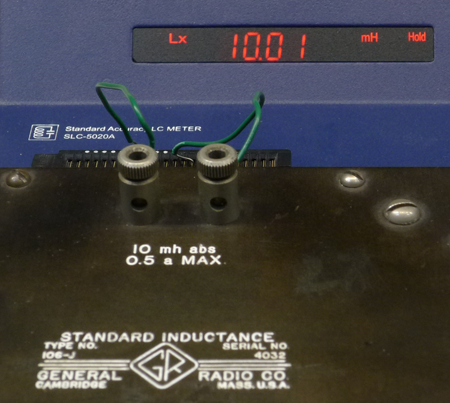

General Radio 106-J No. 4032 10 mH SRF : 253 kHz Cp : 39 pF measure	10.01 mH	9.951 mH 4263B 1 kHz 1V

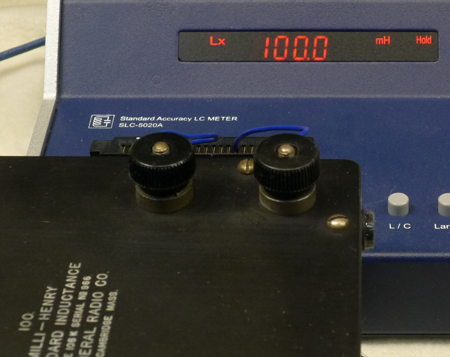

General Radio 106-K No. 966 100 mH SRF : 48.88 kHz Cp : 106 pF measure	100.0 mH	99.27 mH 4263B 1 kHz 1V

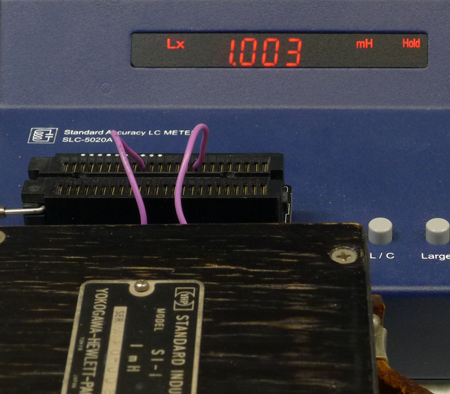

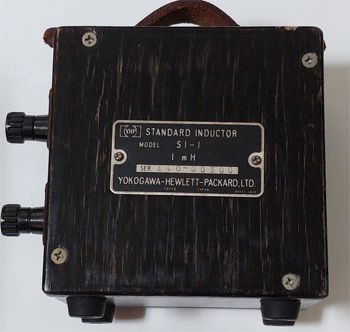

YHP SI-1 No. 1 mH SRF : 468 kHz Cp : 115 pF measure	1.003 mH	0.9939 mH 4263B 10 kHz 1V

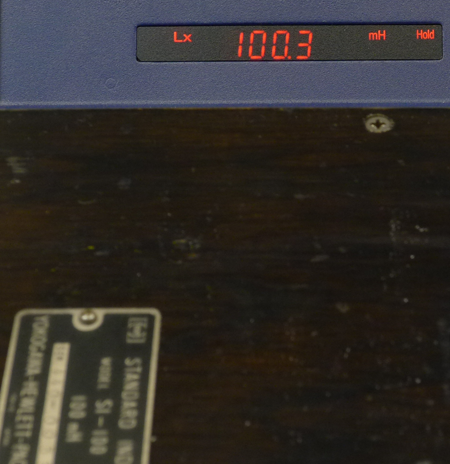

YHP SI-100 No. 100 mH SRF : 35.69 kHz Cp : 198 pF measure	100.3 mH	99.33 mH 4263B 120 Hz 1V

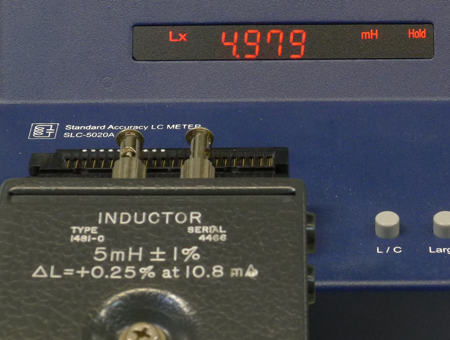

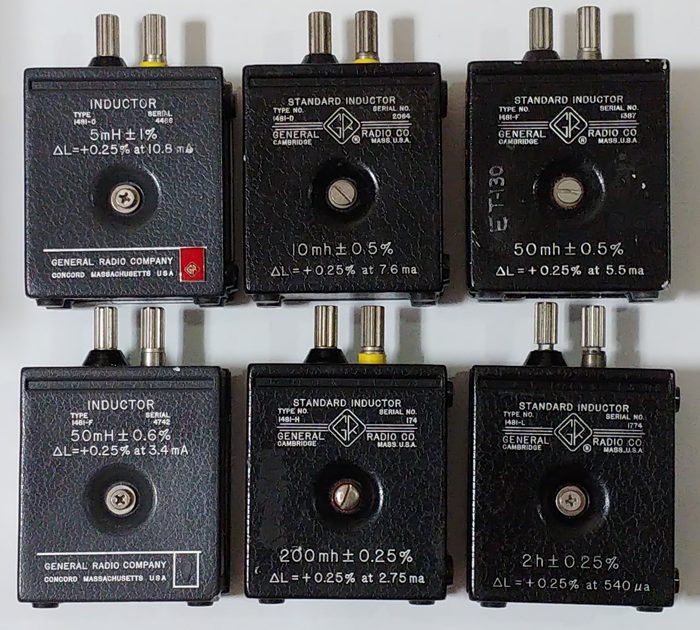

General Radio 1481-C No. 4466 1 % 5 mH SRF : 373.9 kHz Cp : 36 pF measure	4.979 mH	4.9731 mH 4263B 10 kHz 1V

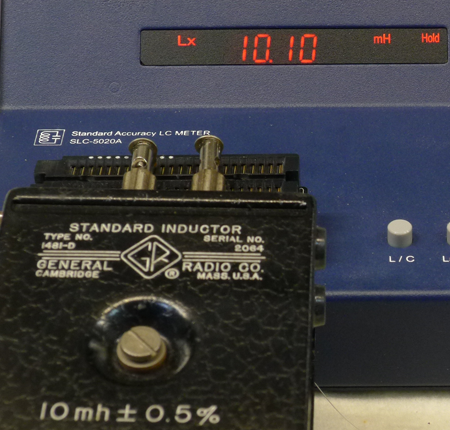

General Radio 1481-D No. 2064 10 mH 0.5 % SRF : 251.2 kHz Cp : 40 pF measure	10.10 mH	10.074 mH 4263B 1 kHz 1V

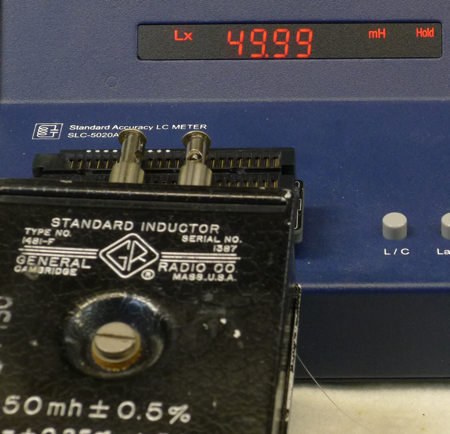

General Radio 1481-F No. 1387 0.5 % 50 mH SRF : 12.23 kHz Cp : 339 pF measure	49.99 mH

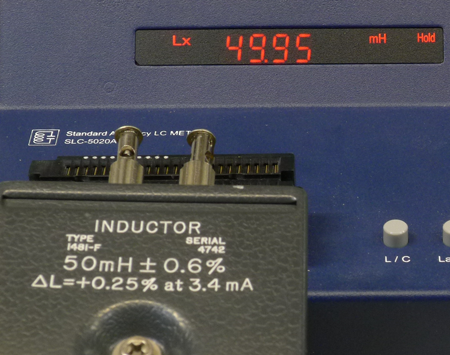

General Radio 1481-F No. 4742 0.6 % 50 mH SRF : 91.61 kHz Cp : 60 pF measure	49.95 mH	49.885 mH 4263B 1 kHz 1V 50.071 mH 4263B 120 Hz 1V

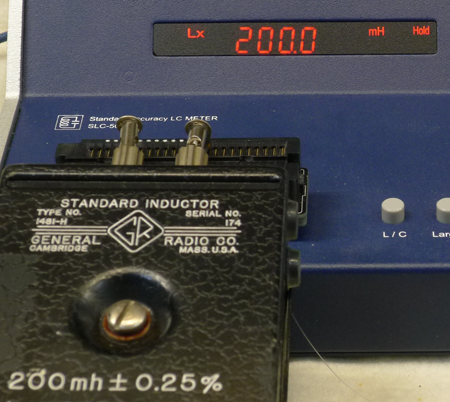

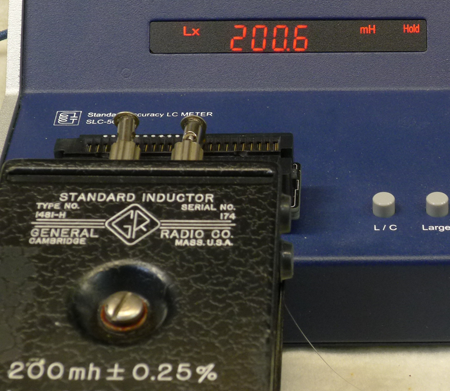

General Radio 1481-H No. 174 0.25 % 200 mH SRF : 21.46 kHz Cp : 275 pF measure	200.6 mH (200.0 mH)	199.97 mH 4263B 120 Hz 1V

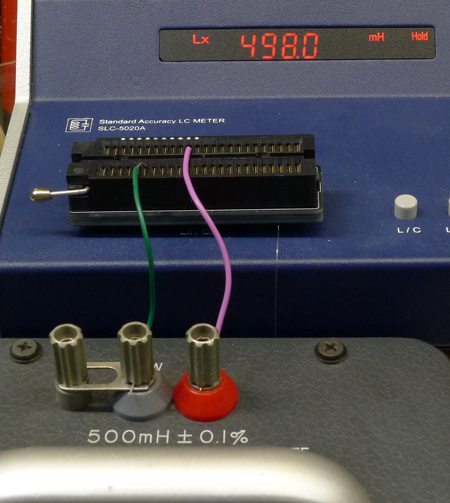

General Radio 1482-N No. 11768 0.1 % 500 mH SRF : 12.23 kHz Cp : 339 pF measure	498.0 mH (495.7 mH)	499.71 mH 4263B 120 Hz 1V

Do you want to have a standard?

Standard Accuracy LC Meter
SLC-5020A

Meter using precision LC resonance method
The display does not shake and measures accurately.
