SLC-5020A

Measure without shaking within the measurement range.

4263B   16047A

Values in 32 average mode

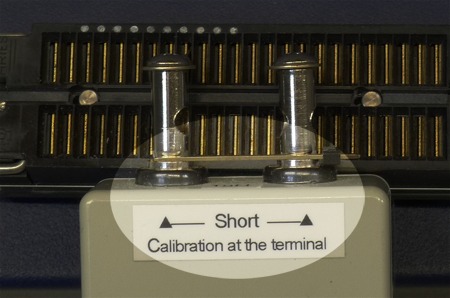

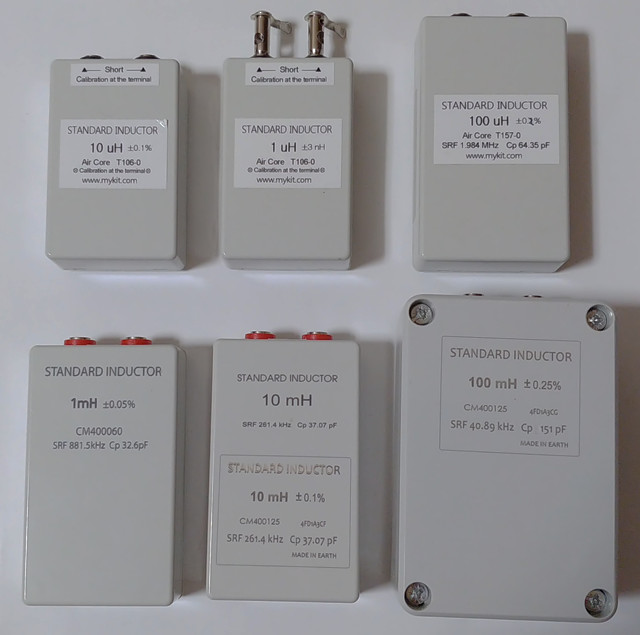

Calibrate on standard inductor terminals.

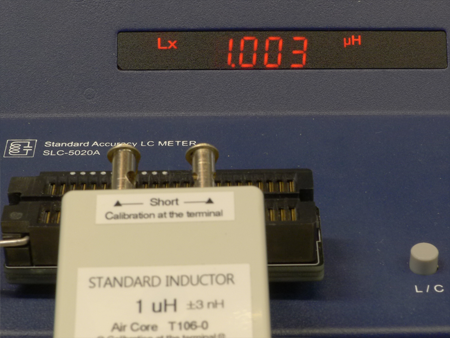

Air Core T106-0

1 μH


General Lx Mode


Connect the inductor to the flute, calibrate and measure.

Calibrate on standard inductor terminals.

Lp : 88.7nH +15%
Ls : 83.1nH +8%
+6 nH
4263B  100kHz

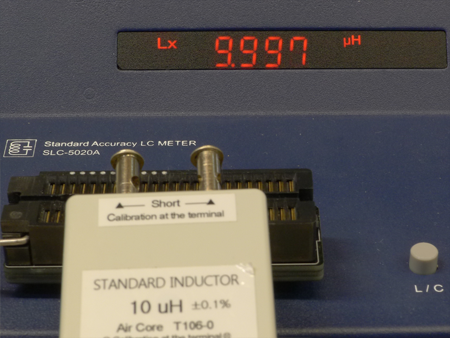

Air Core T106-0

10 μH


General Lx Mode


Connect the inductor to the flute, calibrate and measure.

Calibrate on standard inductor terminals.


Lp : 141.9nH +11%
Ls : 137.5nH +7%
+9 nH
4263B  100kHz

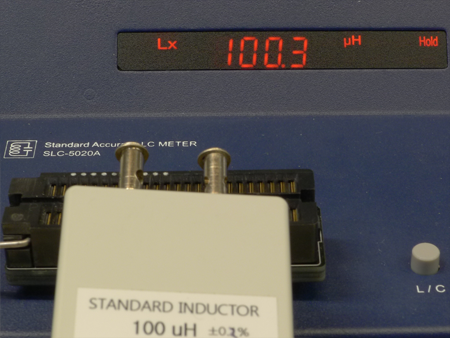

Air Core T157-0

100 μH

SRF 1.984 MHz   Cp 64 pF

Large L Mode



measure

Lp : 203.3nH +11%
Ls : 196.1nH  +7%
+13 nH
4263B  100kHz

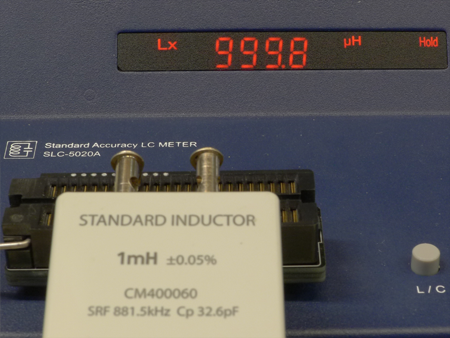

LC200A : 0.050 μH

MPP Core CM400060

1 mH

SRF 881 kHz   Cp 32 pF

Large L Mode


measure

Lp : 134.2nH +10%
Ls : 130.1nH  +7%
+8 nH
4263B  100kHz

LC200A : 0.014 μH

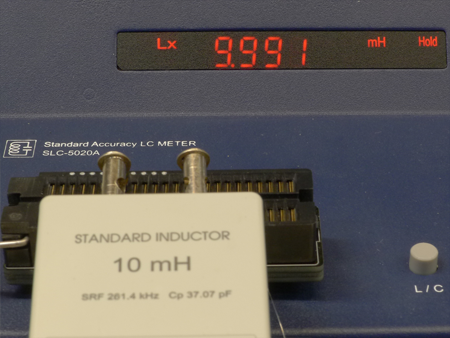

MPP Core CM400125

10 mH

SRF 261 kHz   Cp 37 pF

Large L Mode


measure

Lp : 79.8nH +41%
Ls : 67.4nH  +20%
+11 nH
4263B  100kHz

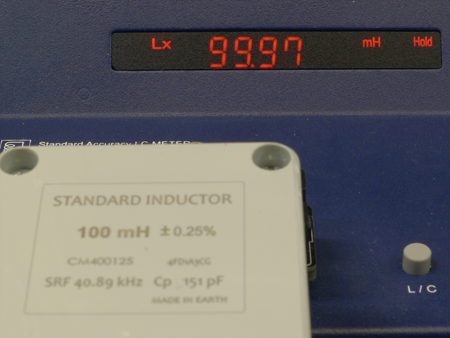

MPP Core CM400125

100 mH

SRF 40 kHz   Cp 150 pF

Large L Mode


measure

Lp : 120.0nH +36%

Ls : 104.8nH  +17%
+17 nH
4263B  100kHz

  Standard Accuracy LC Meter
  SLC-5020A
