Vintage Capacitor

SLC-5020A
 The most practical and accurate L/C measuring instrument in laboratories, etc.

Measure without shaking within the measurement range.

Vishay Vitramon

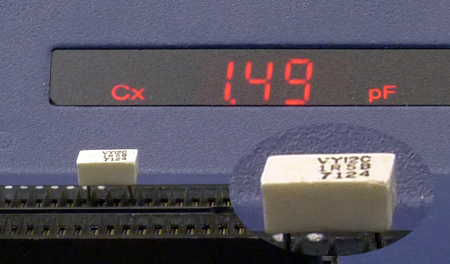

VY12C
1R5B  500VDC

1.5 pF  ± 0.1pF

7124


4 pF  ± 2%

Multifiler Color White : X 0.1

40 X 0.1 = 4 pF

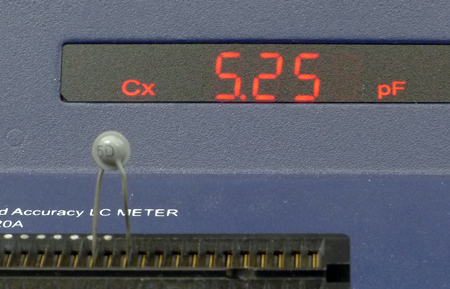

5 pF  ± 0.5pF

5D

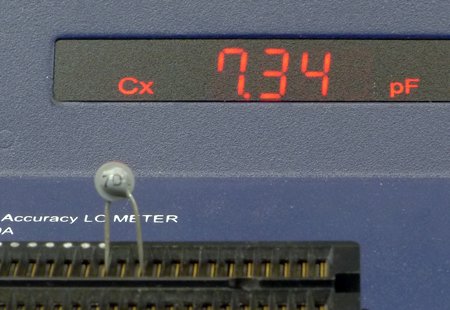

7 pF  ± 0.5pF

7D

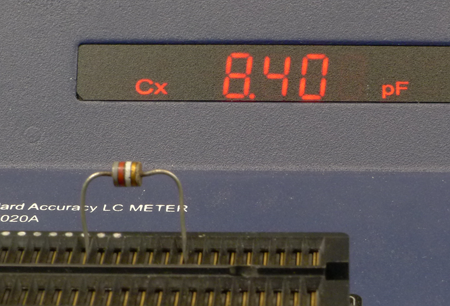

8.2 pF  ± 5%

Multifiler Color White : X 0.1

82 X 0.1 = 8.2 pF

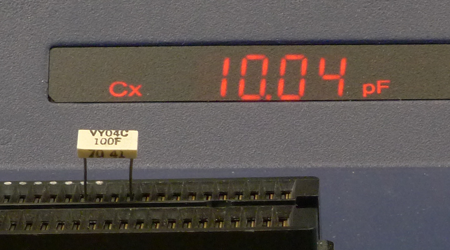

Vishay Vitramon

VY04C  500VDC
100F

10 pF  ± 1%

7041

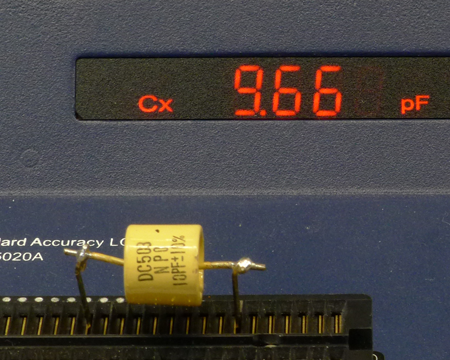

10 pF  ± 10 %

NPO

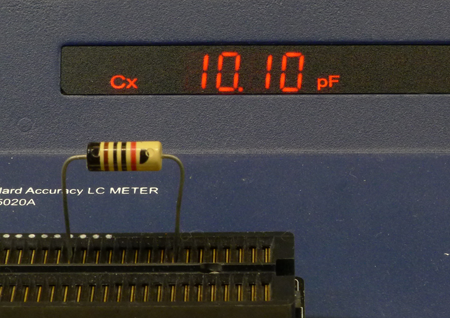

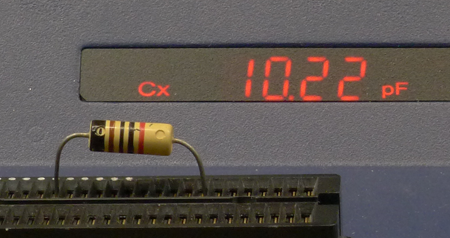

MIL  10pF

10 pF  ± 2%

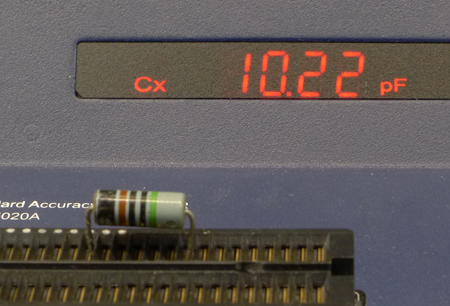

MIL  10pF

10 pF  ± 5 %

MIL  10pF

10 pF  ± 2 %

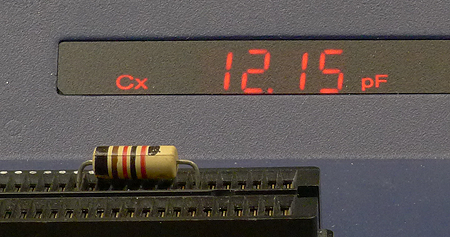

MIL  12pF

12 pF  ± 2 %

MIL  10pF

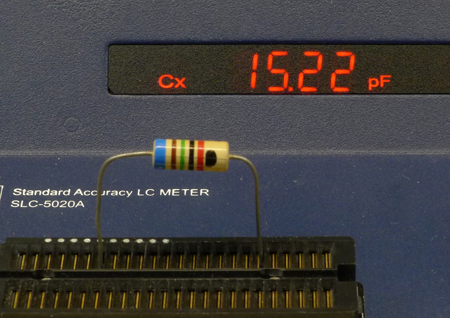

15 pF  ± 2 %

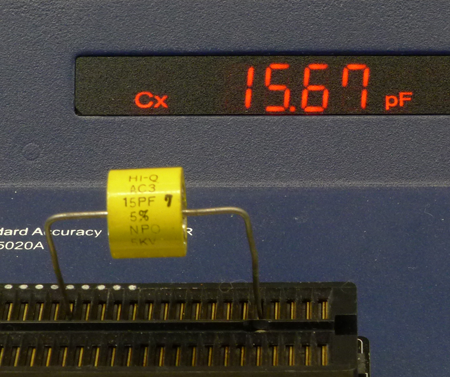

Hi-Q AC3

15 pF  ± 5%

NPO

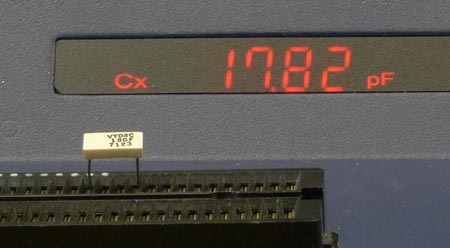

Vishay Vitramon

VY04C  500VDC
100F

18 pF  ± 1%

7123

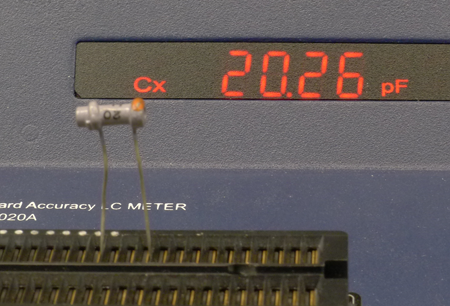

Titacon

20 pF  ± %

20  Hf

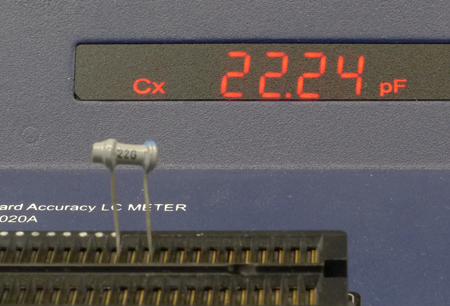

Titacon

22 pF  ± 2%

22G

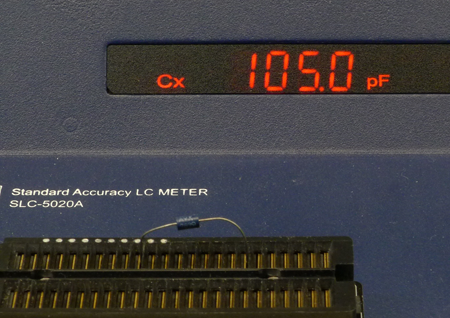

AVX

100 pF  ± %

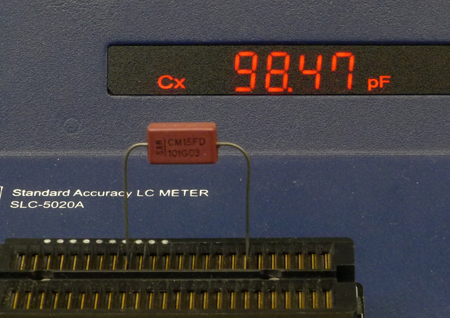

Sang

100 pF  ± %

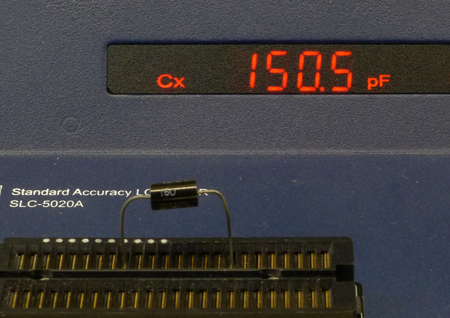

AVX

150 pF  ± %

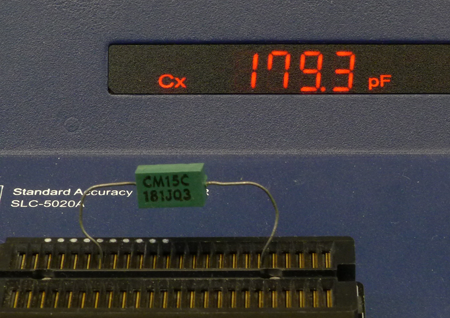

CM15C

180 pF  ± 5%

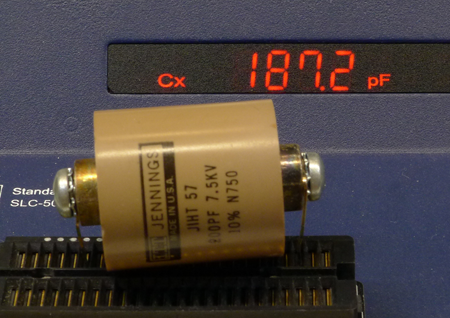

Jannings 7.5KV

200 pF  ± 10%

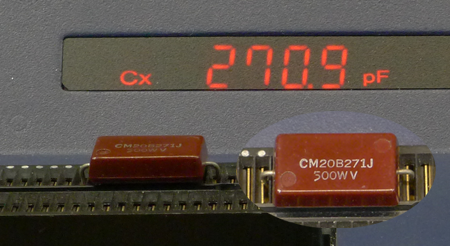

CM20B271J

270 pF  ± 5%

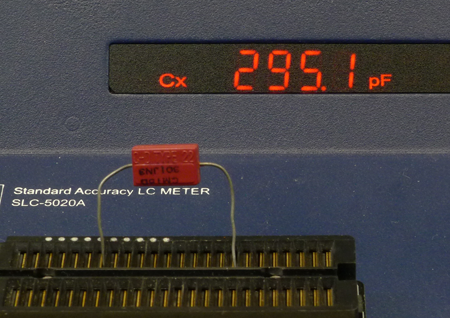

CM15D  301JN3
Case C-D TYPE 22

300 pF  ± 5%

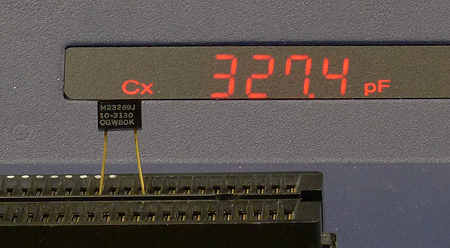

SM23269J

10-3130

CGW80K

10KVDC

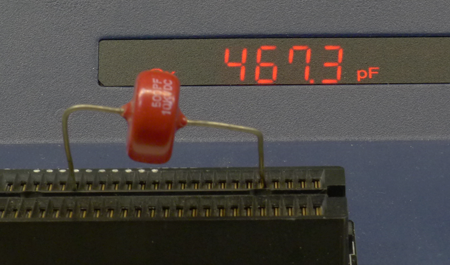

500 pF

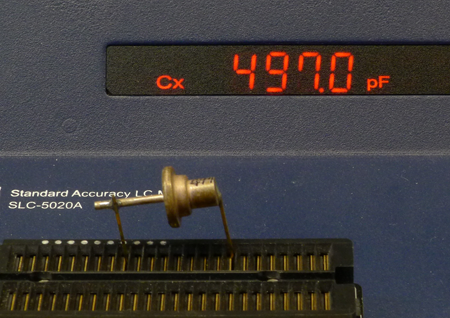

NPO

500 pF  ± %

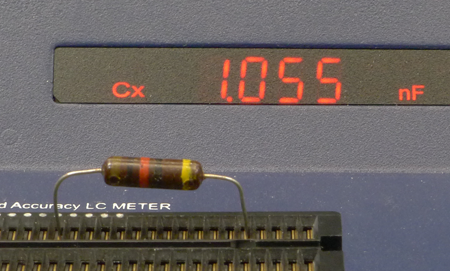

Sprague Bumble Bee.

1000 pF
1 nF

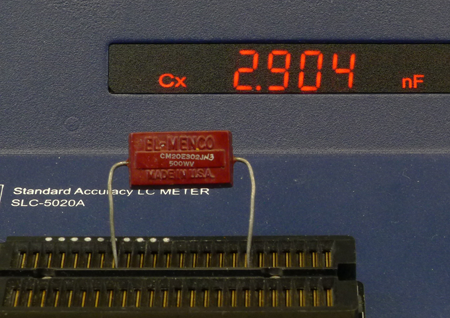

EL-MENCO

CM20E302JN3

3 nF  ±5%

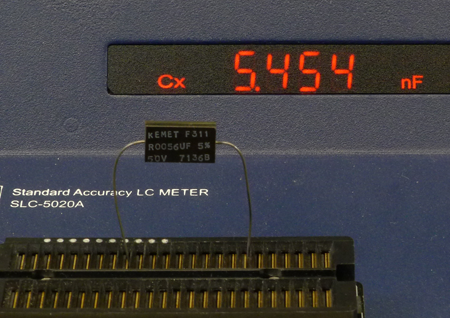

KEMET F311

R0056uF

5.6 nF  ±5%

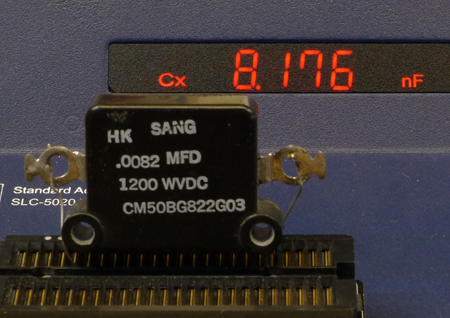

SANG
CM50BG822G03

8.2 nF  ±2%

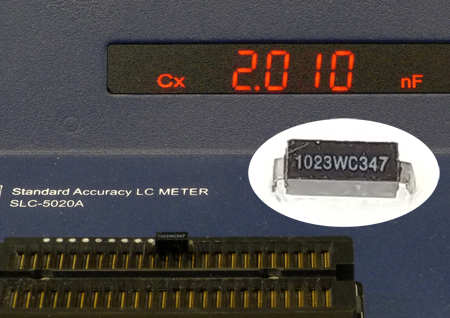

1023WC347

Capacitors of unknown dielectric

2000 pF  ±1%

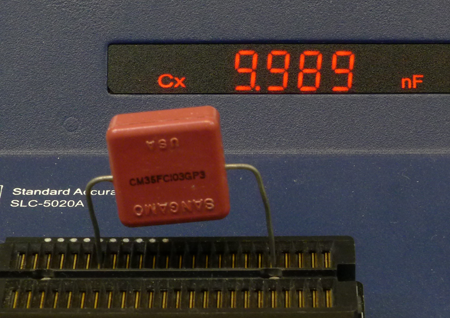

SANGAMO
CM35FC103GP3


10 nF  ±2%

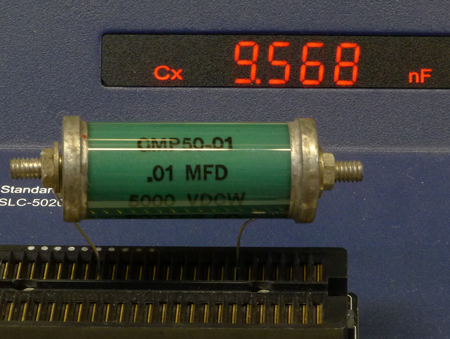

GMP50-01

10nF5KV

0.01 μF

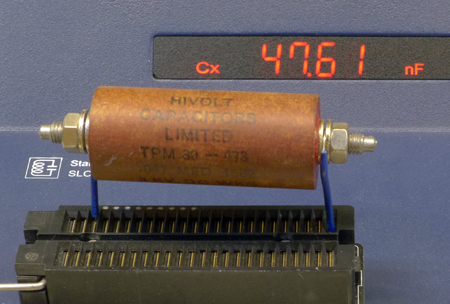

LONDONDERRY N IRELAND
HIVOLT CAPACITORS
3 KV

47 nF

0.047 μF

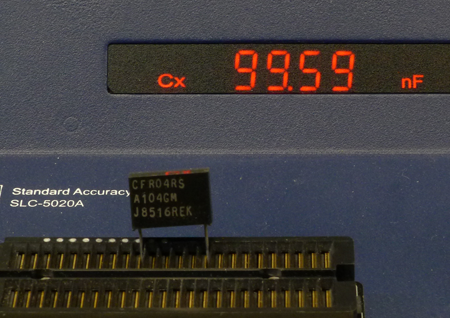

CFR04RS A104GR

100 nF  ±2%

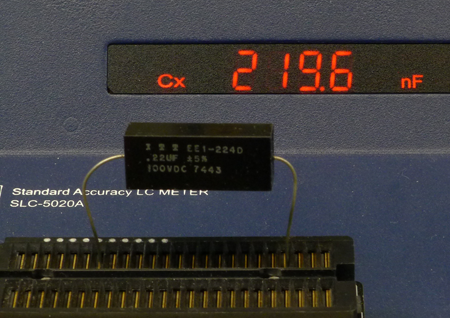

ITT

EE1-224D

220 nF  ±5%

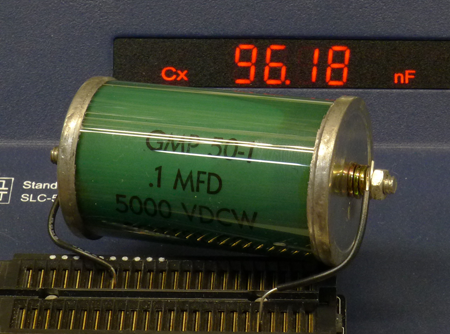

GMP50-1

10nF5KV

0.1 μF

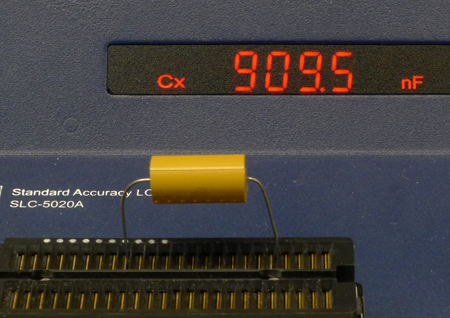

AVX

1.0 μF

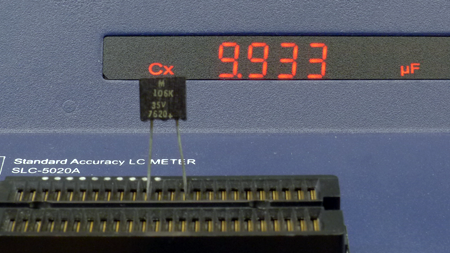

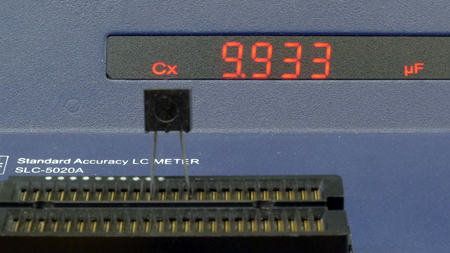

TIM  106K   35V
Y1976  Tantal ?

10 μF

Measure with opposite polarity


Measure with the correct polarity

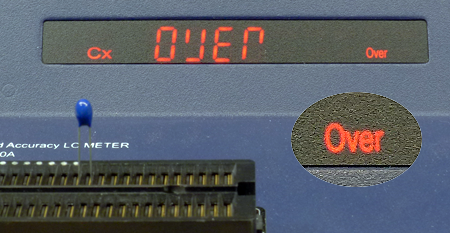

Tantal

47 μF

Over

The SLC-5020A has a capacitance measurement range of 0.1pF to 9.99uF.

SLC-5020A

SLC-5020A can also be used to find impedance bridge LCR meter frequency, etc.

Measure without shaking within the measurement range.  Metal-polypropylene

Tolerances of capacitors and their letter codes

E
Series

Tolerance

C_R > 10 pF

Letter code

C_R < 10 pF

Letter code

0.05 pF

A

E 96

1%

F

0.1 pF

B

E 48

2%

G

0.25 pF

C

E 24

5%

J

0.5 pF

D

E 12

10%

K

1 pF

F

E 6

20%

M

2 pF

G

E3

-20/+50%

S

-

-

-20/+80%

Z

-

-
