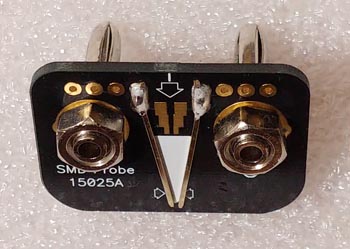

Standard SMD Probe 15025A


Standard SMD Probe 15025A

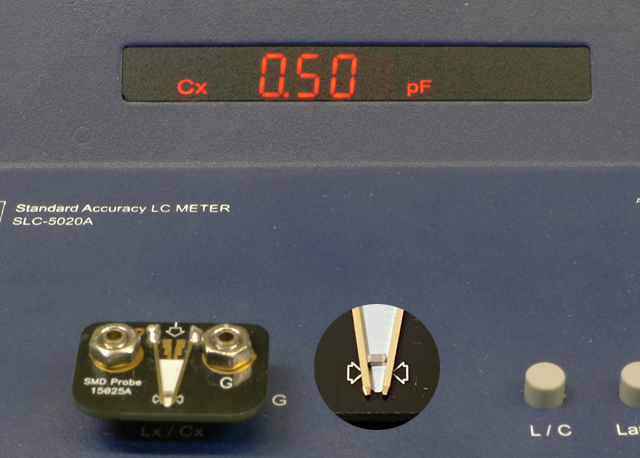

Murata1608 0.5pF NP0

For small value inductors, the calibration location should be considered.

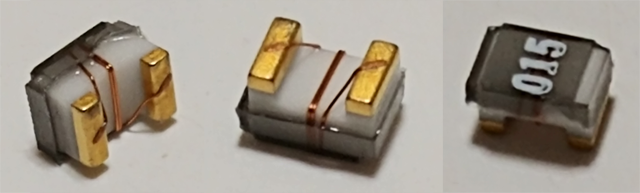

This type of SMD requires soldering on the side for easy measurement.

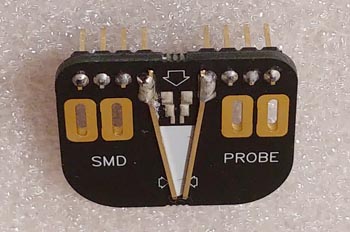

SMD Probe 15003A

Only available with ZIF probe 17063A



SMD Probe 15003A (Available with ZIF Probes 17063A)
















Do you want to have a standard?

  Standard Accuracy LC Meter
  SLC-5020A

Meter using precision LC resonance method
The display does not shake and measures accurately.
