  Standard Accuracy LC Meter
  SLC-5020A

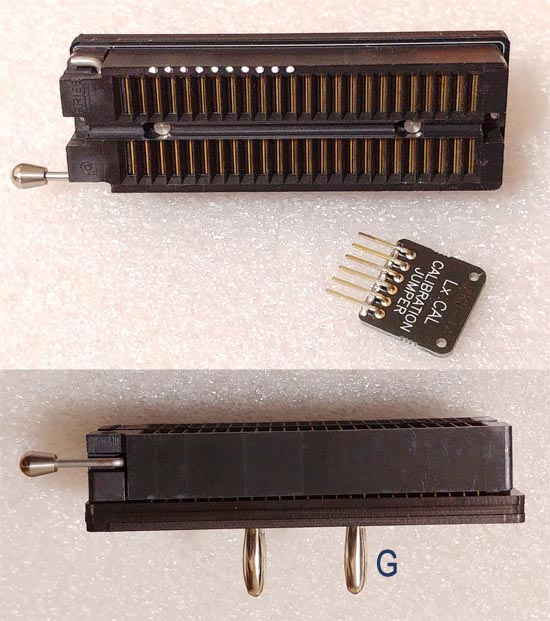

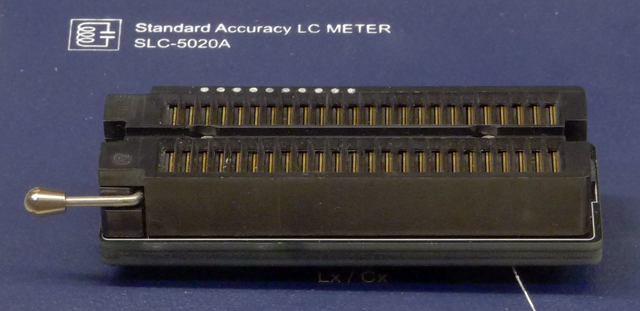

ZIF Probe  17063A


When inserting into the LC Meter body, insert the lever to the left as shown in photo B.

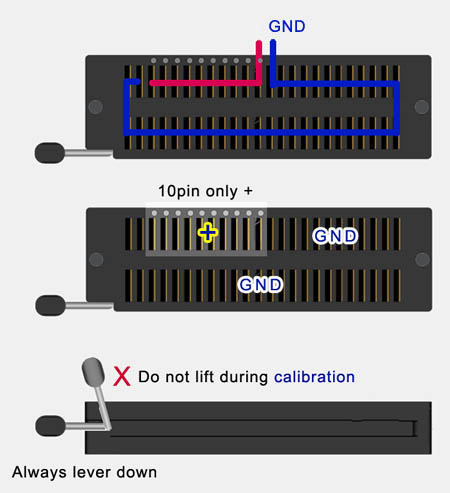

All pins except the 10 white dots are GND.

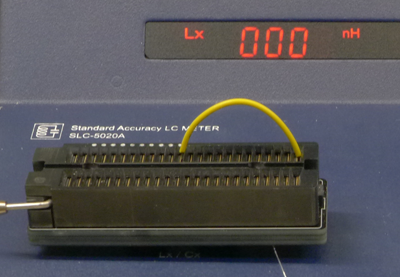

Calibration (Short jumper)

 →

Measuring (Insert inductor)



Calibration (Long short jumper)

 →

Measuring (Insert inductor)

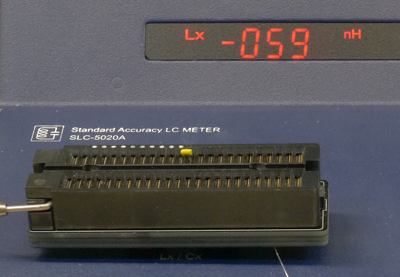

Inductors with fewer than jumpers are marked as
negative



The inductor should be calibrated by reference to the lead length included in the value.

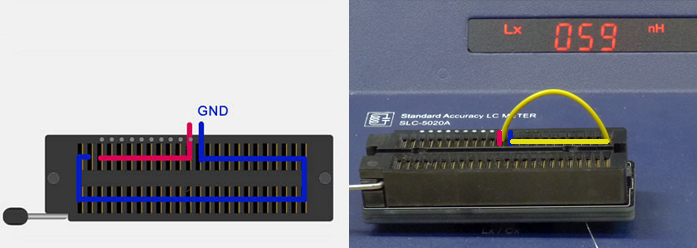

59 nH in semicircle and flue Yellow line combined



See figure below for polarity.

Lower the lever before performing calibration.


Be careful not to contaminate the ZIF probe.

Contamination and contact resistance affect the measurement results.

ZIF Probe  17063A


For capacitors, this includes the lead spacing of the component and inductance is measured including the length of the leads.

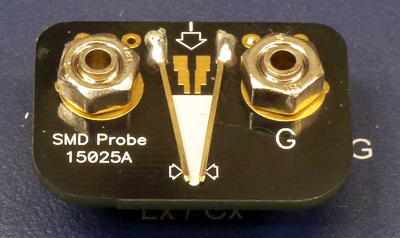

SMD Probe 15025A

Standard SMD Probe 15025A

You can also adjust the pins according to the SMD size.




Standard SMD Probe 15025A

Murata1608 0.5pF NP0

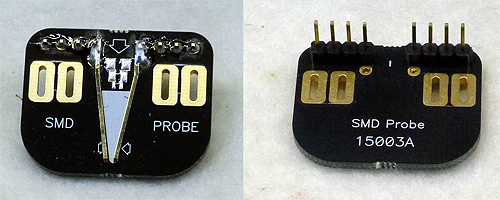

SMD Probe 15003A

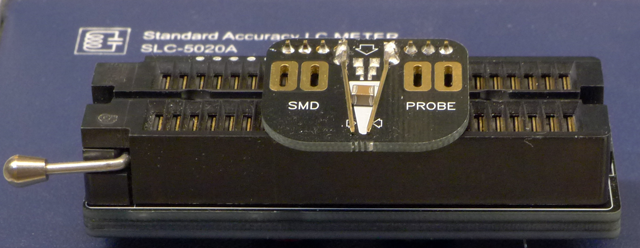

SMD Probe 15003A only available with ZIF Probe















Manual ☜









SLC-5020A
Actual capacity display
